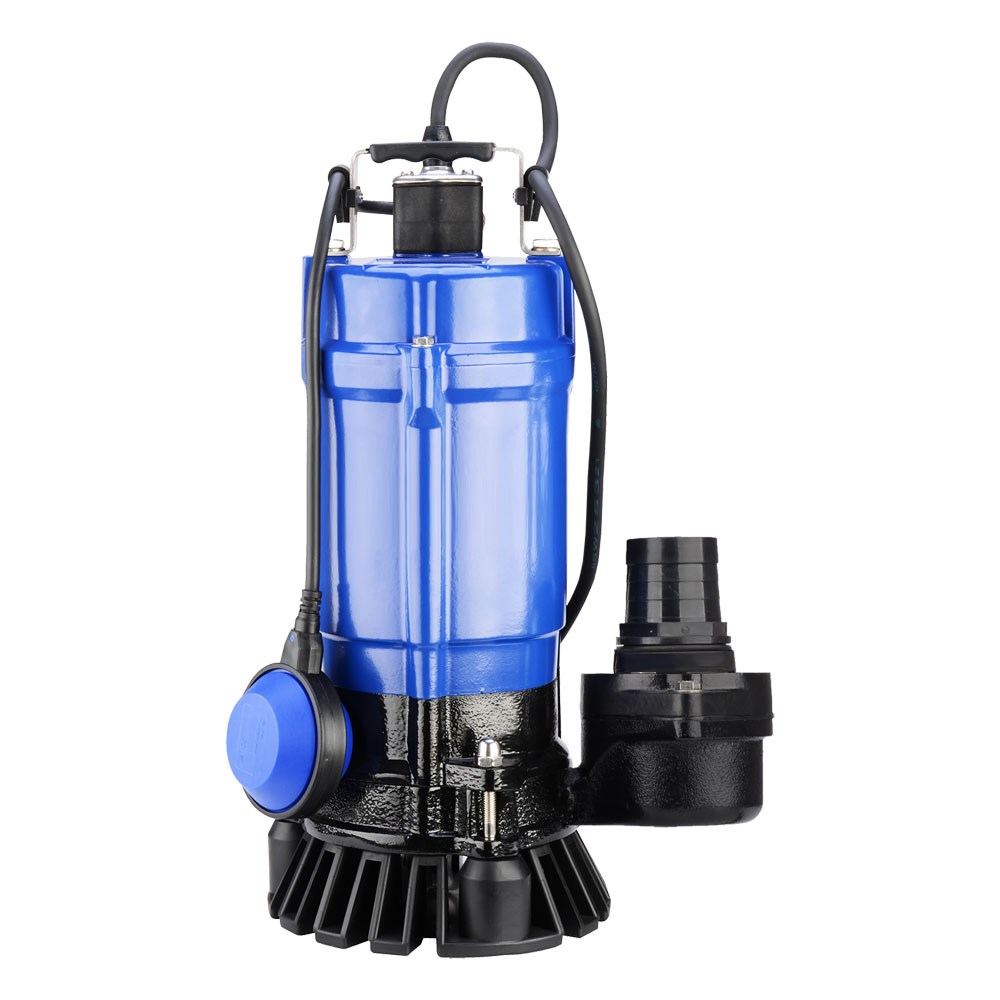

ClayTech Blue SUB10 - Submersible Light Construction Pump with Float 250L/Min 18M 750W 240V

Order Code: 808366

Print
Product Code
CLA-BLUESUB10
RRP: $462.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand ClayTech Pumps
Product Type Light Construction Pump
Suitable For Construction Sites Stormwater
Bar 1.8 Bar
Flow Range Category c. 200 - 299 L/min
Flow Rate (L/min) 250
Float Float Included
Hp 1 Hp
kPa 180 kPa
Kilo Watts 0.75 kW
Head Range Category a. 0 - 39 m
Max Head (m) 18 m
Port Size Outlet 2" BSPF outlet
Powered Electric
Particle Size 10 mm
Warranty (months) 12 Months
Volts 240 V
Watts 750 W
Pack Weight (KG):
15.50
Description
LIGHT CONSTRUCTION PUMPS

Designed for dewatering of construction sites and pits. General dewatering where there is abrasive material. Suitable for construction sites, storm water and basements. Can handle particles up to 25mm x 10mm. Cast iron pump body and corrosion resistant pump components.

0.75kW, 1.0hp, 240V, max hd 18m, max flow 250L/m, 2" BSPF outlet

Benifits:

  • Corrosion resistant pump components
  • Can handle particles to 25mm x 10mm
  • Fully automatic operation
  • Cast iron pump body
  • Dual mechanical seal in oil bath, SIC/SIC Carbon Ceramic
  • Eurethane coated semi vortex impeller allows pumping of suspended solids, sandy and stringy material
  • Agitator on the end of the pump shaft helps prevent air locking and clogging
  • Versatile outlet connection
  • 240V single phase motor with in-built auto reset thermal overload
  • 10m of power cable
  • Suitable for construction sites, storm water and basements
Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagrams v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Certificates & Compliance Information
Download Certificates & Compliance Information v1.03
