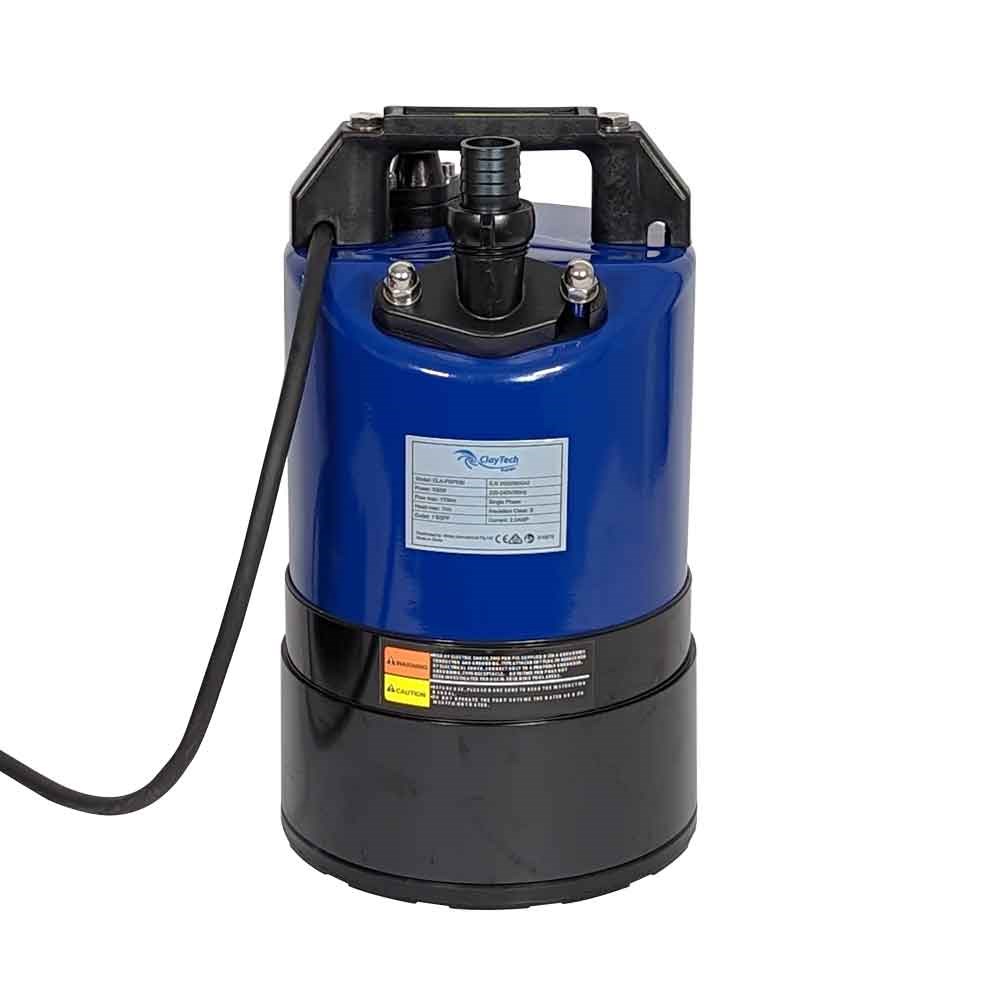

Claytech PSP530 Puddle Sucker Pump

Order Code: 810679

Print
Product Code
CLA-PSP530
RRP: $506.00 incl. GST
Find Your Nearest Store
Product Documents
Technical Specifications
Brand Claytech Pumps
Product Type Drainage Pump
Suitable For Clean Water
Flow Range Category c. 100 - 200 L/min
Flow Rate (L/min) 170
Float Yes
Kilo Watts 0.53
Max Flow (L/min) 210
Head Range Category a. 0 - 39 m
Max Head (m) 11
Port Size Outlet 1"
Powered Electric
Volts 240
Watts 530
Pack Weight (KG):
0.00
Description

The ClayTech PSP530 is a manually operated, light duty, occasional use pump suitable for pumping mostly clean water with minimum soft solids or other contamination.

The PSP530 is a ‘puddle sucker’ type pump. Once primed and pumping, it will pump down to depths less than 3mm making it ideal for basement, garage or pool drainage applications.

Features


  • Pump can be primed through discharge outlet for startup at any water level. The Internal check valve holds prime and restricts back flow through pump when stopped.
  • Quality pump materials and construction to ensure reliable operation
  • Industrial grade coating
  • 10m H07RN-F Neoprene power lead and float lead
  • Easy to install and use
Benefits
  • Light weight - easy to lift and lower
  • Compact and able to be employed in sumps where space is limited
Hydrulic Performance

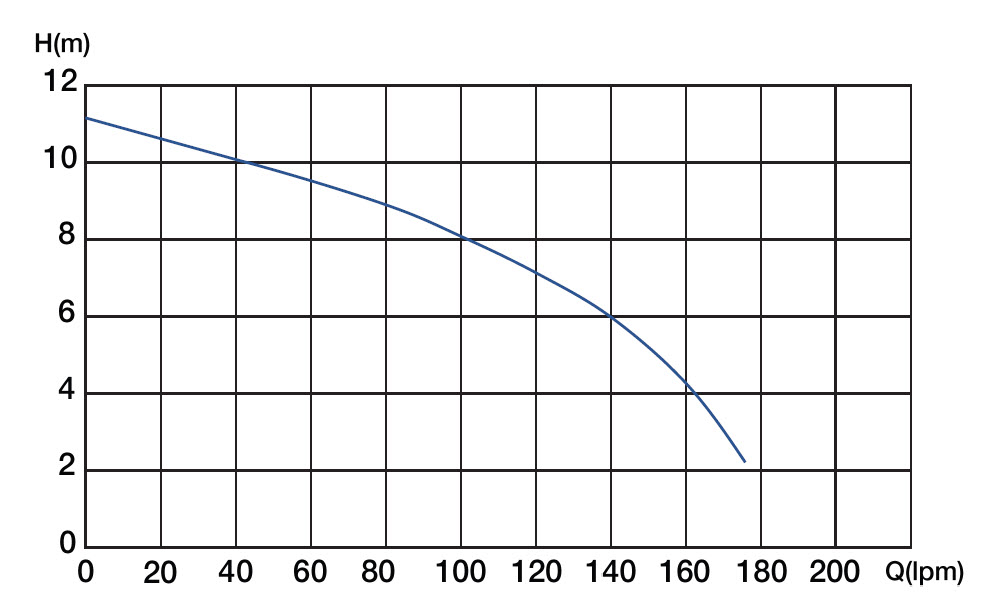

Pump Curves

Technical Data
RATED POWER (W) 530W
MAX. FLOW [LPM] 170 lpm
MAX. HEAD [M] 11m
WORKING TEMPERATURE < 40°C
LIQUID TEMPERATURE 3°C - 40°C
MAX. IMMERSION DEPTH 10m
MAX. DIA. OF PARTICLE < 2mm
MOTOR DUTY S1 Continuous
MOTOR PROTECTION LEVEL Class B
MOTOR PROTECTION In-built auto re-setting thermal overload
CAPACITOR 10 uF +/-5% 450V
MOTOR SHAFT Stainless Steel 201
RATED VOLTAGE 220V-240V 50 Hz
RATED CURRENT 2.0A @ 230V
POWER CABLE TYPE 10m H07RN-F
PROTECTION CLASS IPX8
IMPELLERS Single Impeller
HYDRAULIC BODY Coated AISi12
INLET STRAINER No
OUTLET 1” DN hose tail
MECHANICAL SEALS Graphite/Ceramic
AUTOMATION FUNCTION N/A - Manual Operation
NET WEIGHT (KG) Pump only 13.5kg
PACKAGE DIMENSION 220Lx220Wx340H (mm)
