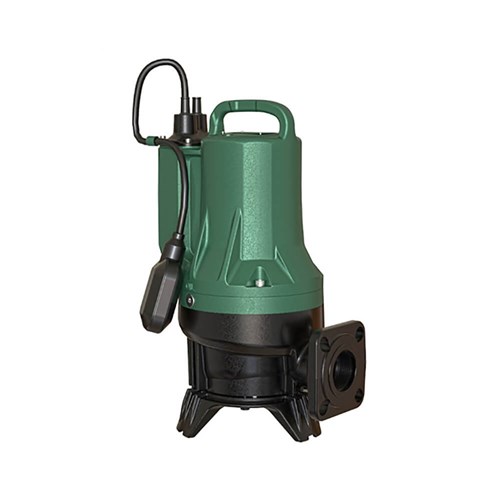

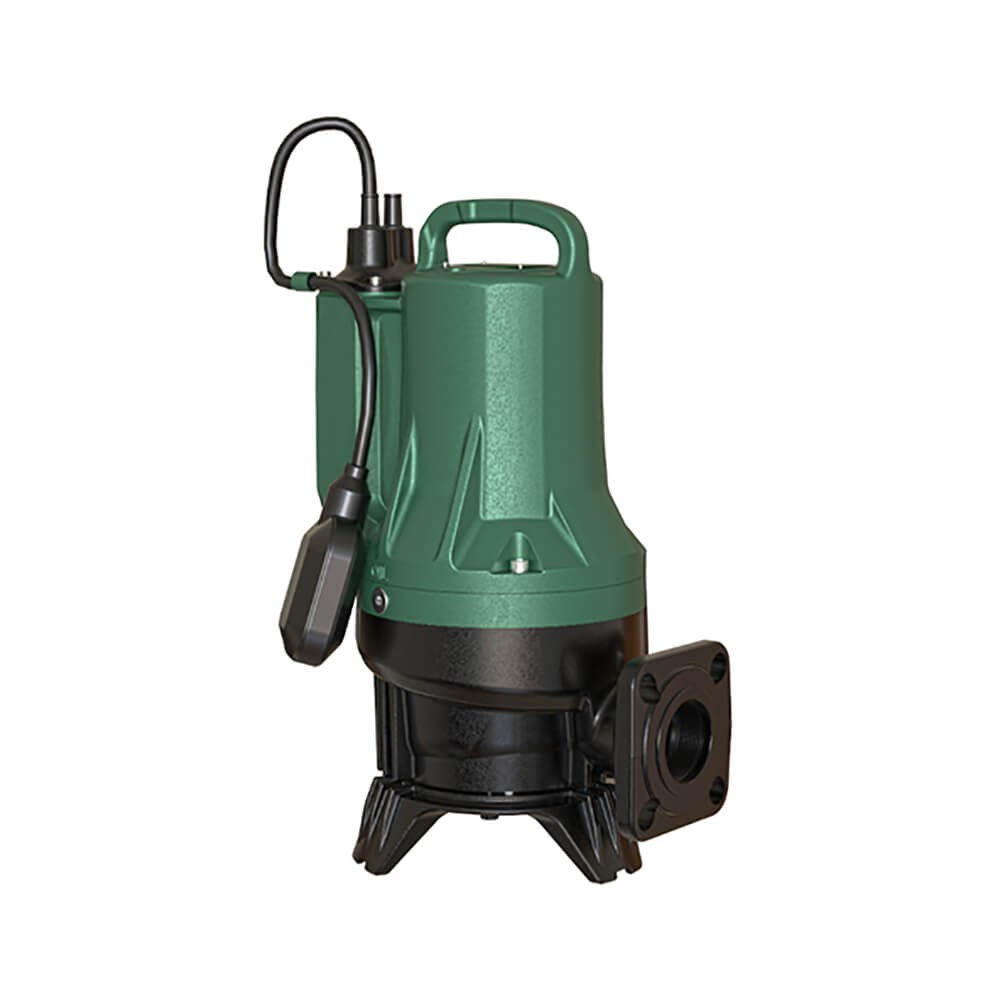

DAB-FEKAFXC20.15MA - Drainage Submersible Pump 840 L/M 15.3MM 1.5KW 240V Auto

Order Code: 810200

Print
Product Code
DAB-FEKA FXC 20.15 MA
RRP: $3118.50 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Bar 1.5
Rated AC Output (W) 711149
Rated AC Output (W) 711155
Rated AC Output (W) 711391
Rated AC Output (W) 711470
Rated AC Output (W) 807150
Flow Range Category f. 500 - 999 L/min
Flow Rate (L/min) 840 L/min
Kilo Watts 1.5 kW
Head Range Category a. 0 - 39 m
Max Head (m) 15.3 m
Port Size Outlet RP2" - DN50PM10/6
Volts 240 V
Pack Weight (KG):
42.00
Description

Drainage Pump

Max head 15.3m, max flow 840 L/m, 2"BSPF

Features

  • Anti-clogging channel impeller.
  • Suitable for drainage and the transfer of effluent and sewage water, containing solids up to 50mm
  • Pump with patented super vortex impeller increase performance without compromising the ability to work in the presence of large solids and long fibres, guaranteeing a completely free passage.
  • Double silicon carbide mechanical seals are entirely enclosed in the oil chamber to avoid direct contact with the pumped liquid.
  • Motor shaft in anticorrosion stainless steel AISI 304
  • External cataphoresis and two component coating for corrosion resistance
  • Resin sealed cable gland
  • Compliant with waste water standards EN 12050
  • Super Vortex impeller, patented by DAB
  • Threaded and flanged outlet

Warranty

2 Year Pump Parts and Labour Warranty
