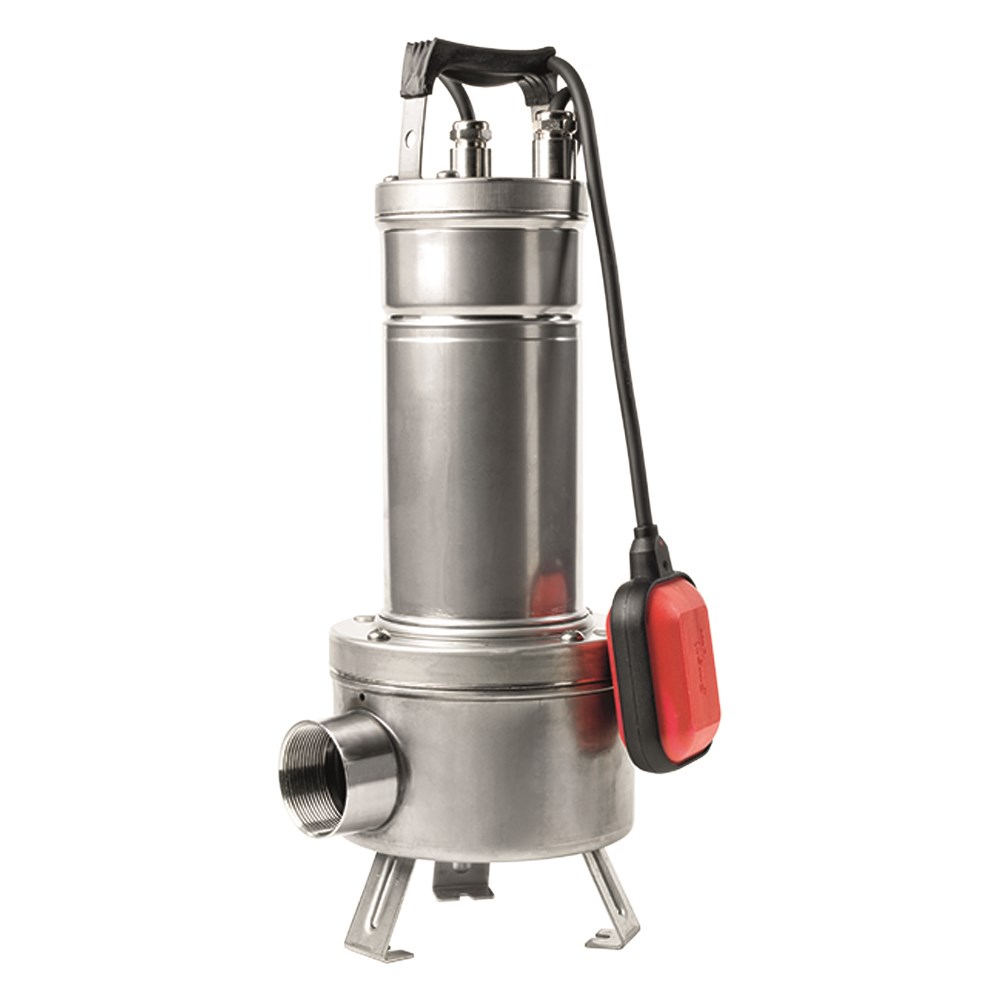

DAB-FEKAVS1000MA - PUMP SUBMERSIBLE HEAVY DUTY WITH FLOAT 450L/MIN 11.8M 1.0KW 240V

Order Code: 701557

Print
Product Code
DAB FEKAVS1000MA
RRP: $1760.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Vortex Pump
Suitable For Dirty Water
Bar 1.18 Bar
Flow Range Category e. 400 - 499 L/min
Flow Rate (L/min) 450 L/min
Hp 1.36 Hp
Kilo Watts 1 kW
Head Range Category a. 0 - 39 m
Max Head (m) 11.8 m
Port Size Outlet 2" BSPF outlet
Powered Electric
Particle Size 50 mm
Volts 240 V
Warranty (months) 24 Months
Watts 1000 W
Pack Weight (KG):
15.68
Description
DAB Heavy Duty Stainless Steel Vortex Pumps

Submersible centrifugal pump with liquid vortex cast steel impeller (technopolymer impeller for Feka VX), suitable for pumping sewer water and waste water in general containing solids up to a maximum size of 50 mm. Handle with insulating rubber cover. AISI 316 stainless steel drive shaft. Double mechanical seal with intermediate oil chamber (atoxic oil), in carbon/alumina on the motor side and silicon carbide/silicon carbide on the pump side.

1.0kW, 1.36hp, 240V, max hd 11.8m, max flow 450L/m, 2" BSPF outlet. Particle size 50mm.

Warranty

2 Year DAB Pumps Warrranty

DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.

dna.dabpumps.com
