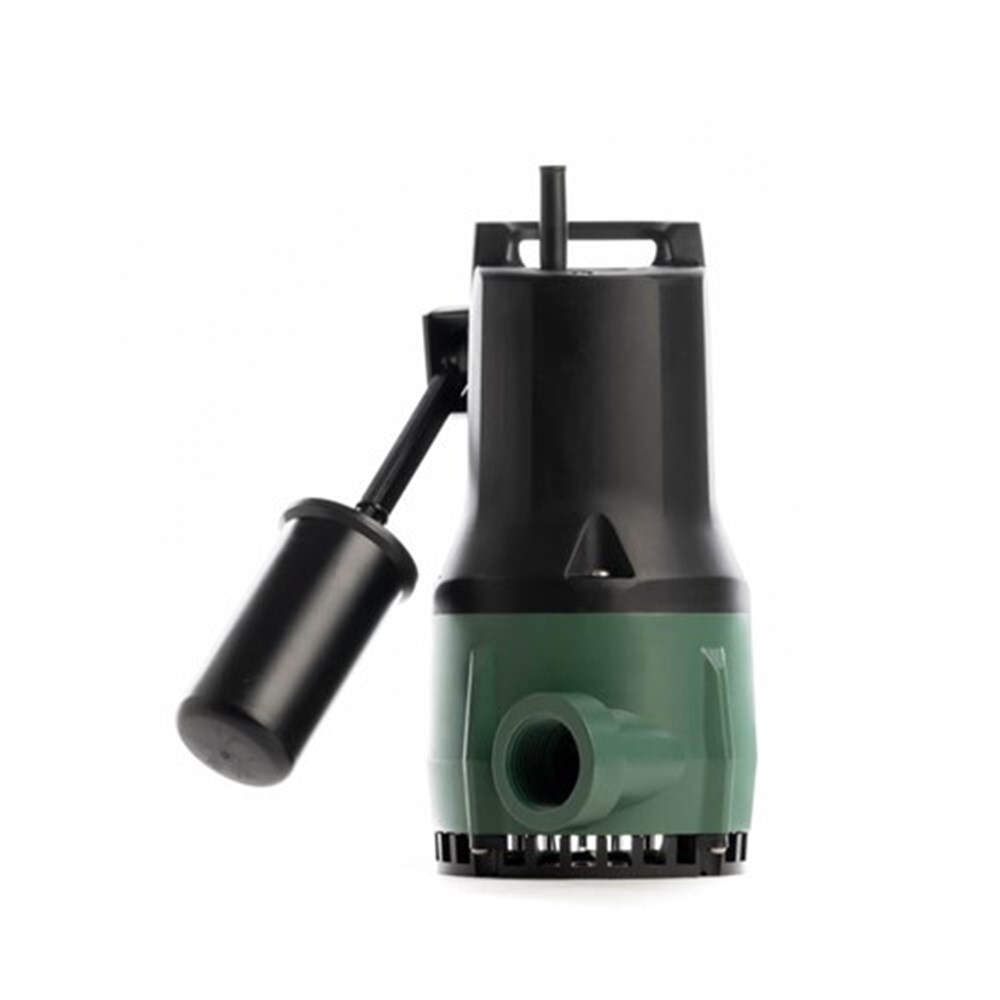

The NOVA line with open impeller is suited to all clean and waste water with solids measuring up to 10 mm.
It can be used to empty tanks, vats or cisterns, drain flooded basements, cellars and garages, and prevent flooding when installed in rainwater wells.
It can also be used as a portable pump in emergencies to drain water out of flooded rooms.
OPERATING RANGE
Flow rate up to 16 m3/h
with head up to 10.2 metres
LIQUID TEMPERATURE RANGE
from 0 °C to +35 °C for domestic use
from 0 °C to +50 °C for other uses
OUTPUT
1” ¼ F
| Technical Data |
| Model |
P2 (KW |
H Max (m) |
Q Max (L/min) |
Free Passage |
| NOVA 180 |
0.20 |
5 |
80 |
5mm |
| NOVA 200 |
0.22 |
6.1 |
200 |
5mm |
| NOVA 300 |
0.22 |
6.8 |
200 |
10mm |
| NOVA 600 |
0.55 |
10.5 |
250 |
10mm |
