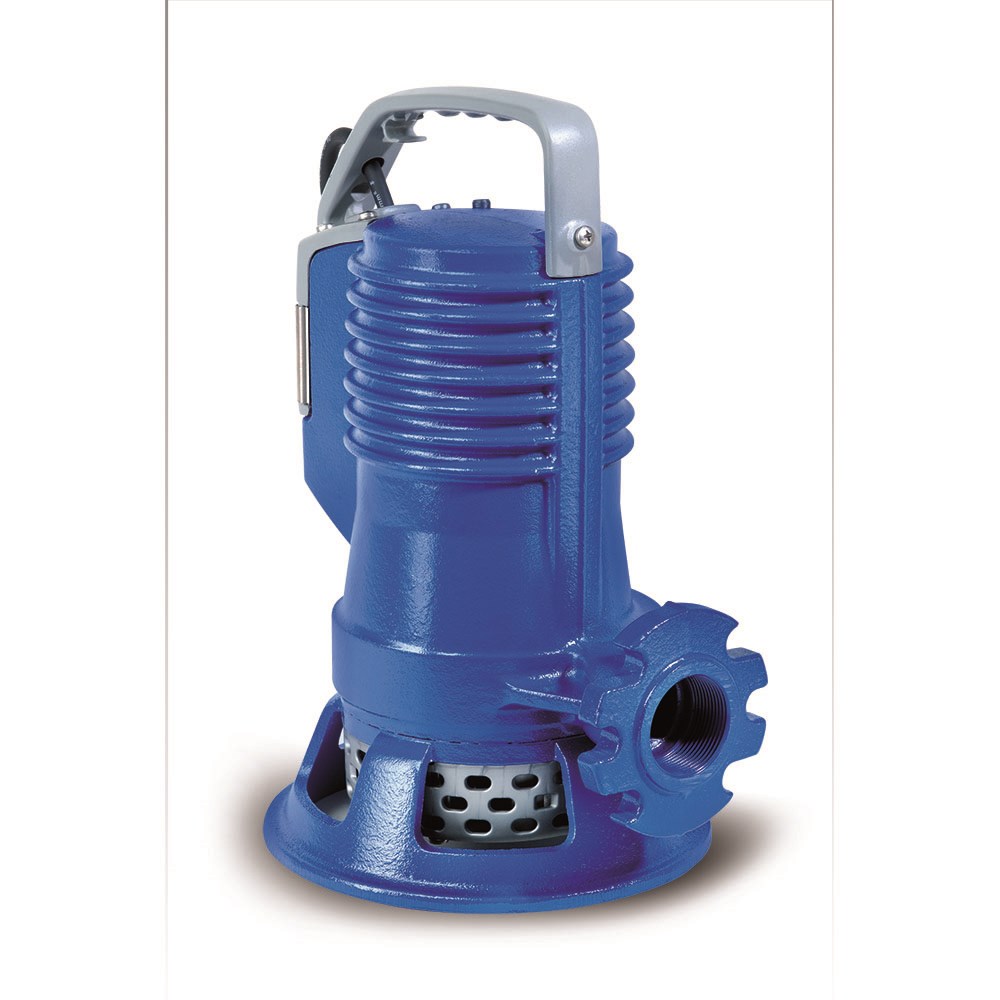

ZEN-APBLUEP200/2/G40HMEX - PUMP SUB IECEX SLIGHTLY DIRTY WATER HIGH HEAD 420L/M 26.6M 1.5K

Order Code: 711101

Print
Product Code
ZEN-APBLUEP200/2/G40HMEX
RRP: $3740.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand Zenit Pumps
Product Type Submersible Pump
Bar 2.66 Bar
Flow Range Category e. 400 - 499 L/min
Flow Rate (L/min) 420 L/min
Hp 2 Hp
Kilo Watts 1.5 kW
Head Range Category a. 0 - 39 m
Max Head (m) 26.6 m
Port Size Outlet 1 1/2" BSPF outlet
Particle Size 6 mm
Volts 240 V
Watts 1500 W
Pack Weight (KG):
0.00
Description
ZENIT AP Blue Professional Series

Used for clear wastewater, rainwater and seepage containing small amounts of sand. Its high manometric head makes this series suitable for the creation of water features and decorative fountains. The electric pump is intended for both domestic and professional use.

1.5kW, 2.0hp, 240V without float switch, max hd 26.6m, max flow 420L/m, 1 1/2" BSPF outlet. Particle size 6mm.

Warranty

2 Year Zenit Warranty

Operation and Installation Manuals
Download Operation & Installation Manuals v1.0

Zenit AP BluePRO Features
.
1. Lifting handle
Ergonomic technopolymer lifting and carrying handle. Clip floatswitch adjustment.
2. Cable gland System
Innovative cable gland system with twin O-rings to ensure maximum tightness.
3. Motor and electrical equipment
Dry motor with thermal protections. Single-phase models with internal capacitor. Three-phase models with motor protection relay.
4. Mechanical seals
Two silicon carbide mechanical seals (2SiC) , and V-ring in direct contact with the liquid.
5. Oil sump
Oil sump which guarantees longer mechanical seal lifetime, and is easily accessible thanks to a patented system to simplify maintenance procedures.
6. Intake strainer
Intake strainer in impact-resistant polypropylene and spheroidal cast iron feet.
7. Discharge
Threaded, flanged discharge for the maximum ease of installation.


IECEx Zone 2 Approved
IECex International Certification

IECEx is the IEC System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres. It uses quality assessment specifications that are based on International Standards prepared by the International Electrotechnical Commission (IEC).

Zenit Submersible Pumps exceed the new standard.
As one of the leading names in water treatment technologies, this pump have been awarded the IECEx – the international certification covering the use of equipment and services in explosive conditions.

So what is a ‘hazardous area’?
You can’t be too careful in hazardous areas – which is any space where flammable liquids, vapours, gases or combustible dusts could occur in high enough quantities to cause a fire or even an explosion.
These include:

  • car parks
  • truck stops
  • vehicle workshops
  • bus depots
  • and garages

Read more about IECEx International Certification
Spare Parts
Code
Part Number
Description
711360
ZEN-BEARING 6203ZZ
BEARING 6203ZZ
711022
ZEN2517028100000
CAPACITOR 30 UF
801156
ZEN601008001
KIT GASKET BLUE
711284
ZEN-DRBLUE-21
Zenit DRBLUE Strainer - ZEN-DRBLUE-21
