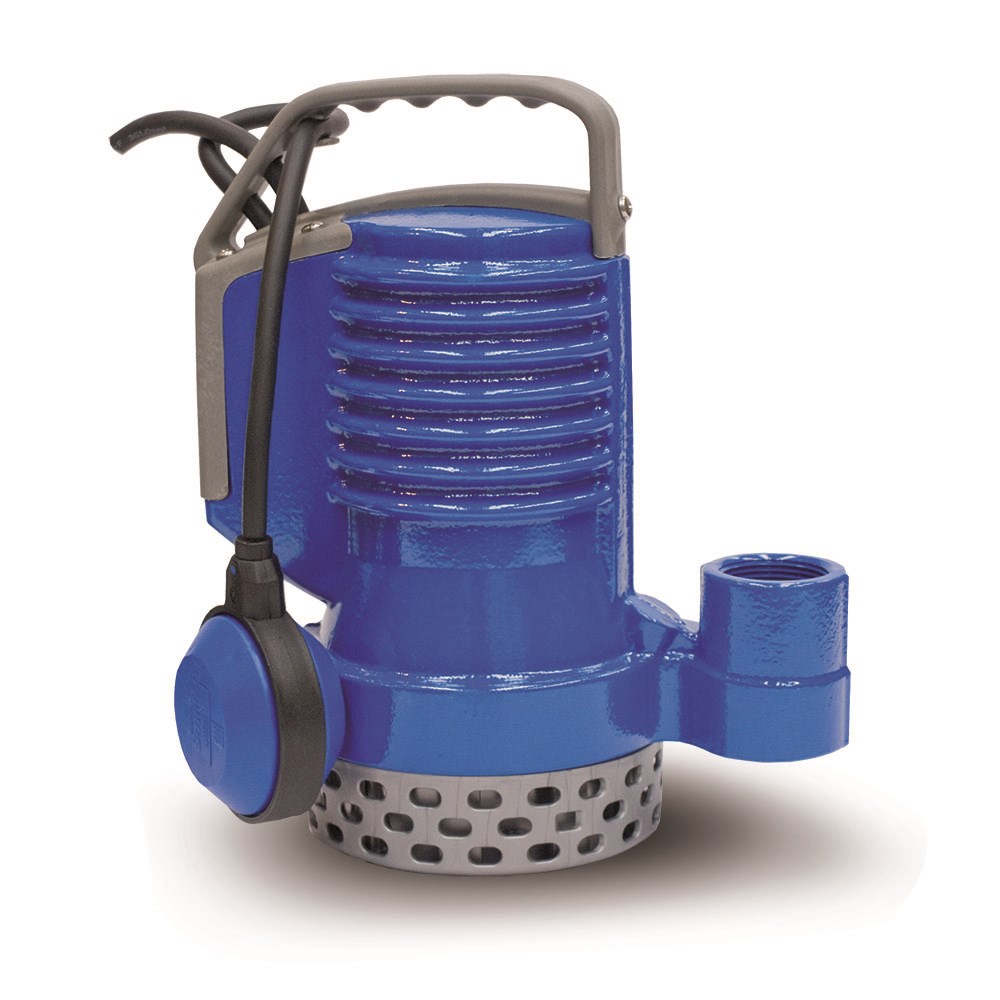

ZEN-DRBLUE75/2/G32VMGEX - PUMP SUB IECEX SLIGHTLY DIRTY WATER DOMESTIC 240L/M 12M 0.55KW 2

Order Code: 711708

Print
Product Code
ZEN-DRBLUE75/2/G32VMGEX
RRP: $1760.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand Zenit Pumps
Product Type Submersible Pump
Bar 1.2 Bar
Approval IECex Zone 2 Approved
Flow Range Category d. 300 - 399 L/min
Flow Rate (L/min) 300 L/min
Hp 0.75 Hp
Kilo Watts 0.55 kW
Head Range Category a. 0 - 39 m
Max Head (m) 12 m
Port Size Outlet 1 1/4" BSPF outlet
Particle Size 7 mm
Volts 240 V
Watts 550 W
Pack Weight (KG):
13.90
Description
ZENIT DR Blue Series - Open multi-vane fully sumberged impeller

Ideal for use with clear or slightly soiled wastewaters containing small solids, strained water, rainwater, seepage and water pumped from underground. Suitable and reliable for domestic use, including heavyduty applications.

0.55kW, 0.75hp, 240V with IECEx float switch, max hd 12m, max flow 300L/m, 1 1/4” BSPF outlet. Particle size 7mm.

Warranty

2 Year Zenit Warranty

Operation and Installation Manuals
Download Operation & Installation Manuals v1.0

Zenit DR Blue Features
.
1. Lifting handle
Ergonomic technopolymer lifting and carrying handle. Clip floatswitch adjustment.
2. Cable gland System
Innovative cable gland system with twin O-rings to ensure maximum tightness.
3. Motor and electrical accessories
Dry motor with thermal protections. Internal startup capacitor.
4. Mechanical seals
One silicon carbide mechanical seal (SiC) and one alumina graphite mechanical seal (AL), V-ring in direct contact with the liquid.
5. Oil sump
Oil sump which guarantees longer mechanical seal lifetime, and is easily accessible thanks to a patented system to simplify maintenance procedures.
6. Anti-clogging System
The diffuser plate incorporates the Anti Clogging System (ACS), consisting of grooves in the plate to facilitate the ejection of solids.
7. Intake strainer
Intake strainer in impact-resistant polypropylene.


IECEx Zone 2 Approved
IECex International Certification

IECEx is the IEC System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres. It uses quality assessment specifications that are based on International Standards prepared by the International Electrotechnical Commission (IEC).

Zenit Submersible Pumps exceed the new standard.
As one of the leading names in water treatment technologies, this pump have been awarded the IECEx – the international certification covering the use of equipment and services in explosive conditions.

So what is a ‘hazardous area’?
You can’t be too careful in hazardous areas – which is any space where flammable liquids, vapours, gases or combustible dusts could occur in high enough quantities to cause a fire or even an explosion.
These include:

  • car parks
  • truck stops
  • vehicle workshops
  • bus depots
  • and garages

Read more about IECEx International Certification
Spare Parts
Code
Part Number
Description
711026
ZEN270830510200400000
IMPLR SCREW (3508#0500200442)
801156
ZEN601008001
KIT GASKET BLUE
802762
ZEN602008012
SEAL KIT BLUE
711284
ZEN-DRBLUE-21
Zenit DRBLUE Strainer - ZEN-DRBLUE-21
Zenit Pumps Product Selection Tool
