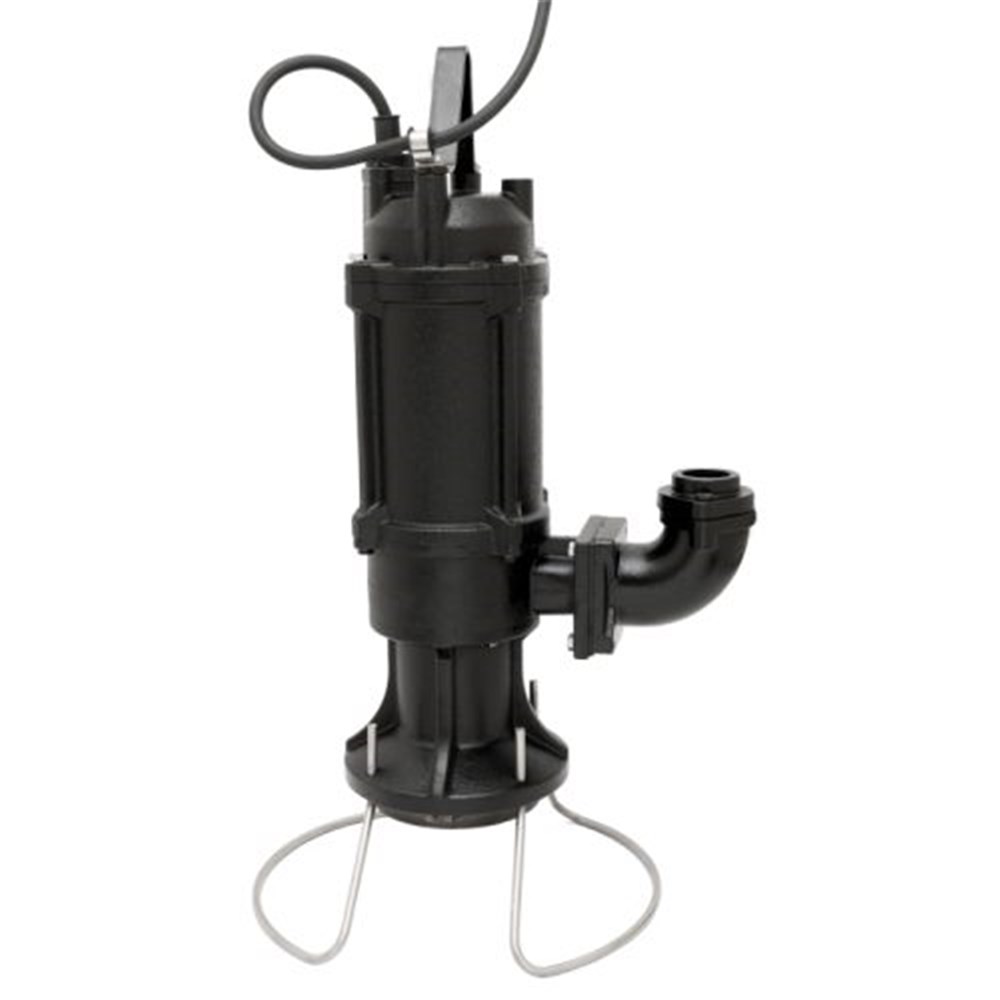

BIA-PDG150M - PUMP SUBMERSIBLE SEWAGE 50L/MIN 50M 1100W 240V

Order Code: 800587

Print
Product Code
BIA-PDG150M
RRP: $4510.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand Bianco Pumpz
Product Type Sewage Pump
Suitable For Sewage and Wastewater
Bar 5 Bar
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 50 L/min
Float Float Not Included
Hp 1.5 Hp
kPa 500 kPa
Kilo Watts 1.1 kW
Head Range Category b. 40 - 59 m
Max Head (m) 90 m
Port Size Outlet 1 1/4" BSPF outlet
Powered Electric
Volts 240 V
Warranty (months) 24 Months
Watts 1100 W
Pack Weight (KG):
0.00
Description
Bianco Positive Displacement Grinder Pump High Pressure

The pump is a positive displacement grinder pump with a heavy duty cutter and cutter ring used to treat unstrained waste waters in "low" flow, high head applications.

Bennifts:

  • Cast iron pump body for durability under harsh conditions
  • Heavy duty silicon carbide mechanical seal
  • Cutter with cutter rings cuts solids to smallest possible size to reduce clogging
  • Used for unstrained waste waters
  • Perfect for low pressure sewer applications
  • Also available in Packaged Pump Stations - 900L, 1200L and 3000L sizes. Suitable for new house dwellings and low lying, hilly, sand or rocky areas.

1.1kW, 1.5hp, 240V, without float switch, max hd 90m, max flow 50L/m, 1 1/4” BSPF outlet

Warranty

2 Year Bianco Pumpz Warranty

Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Product Brochures
Download Brochures v1.0 Download Brochures v1.01
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagrams v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Certificates & Compliance Information
Download Certificates & Compliance Information v1.0
