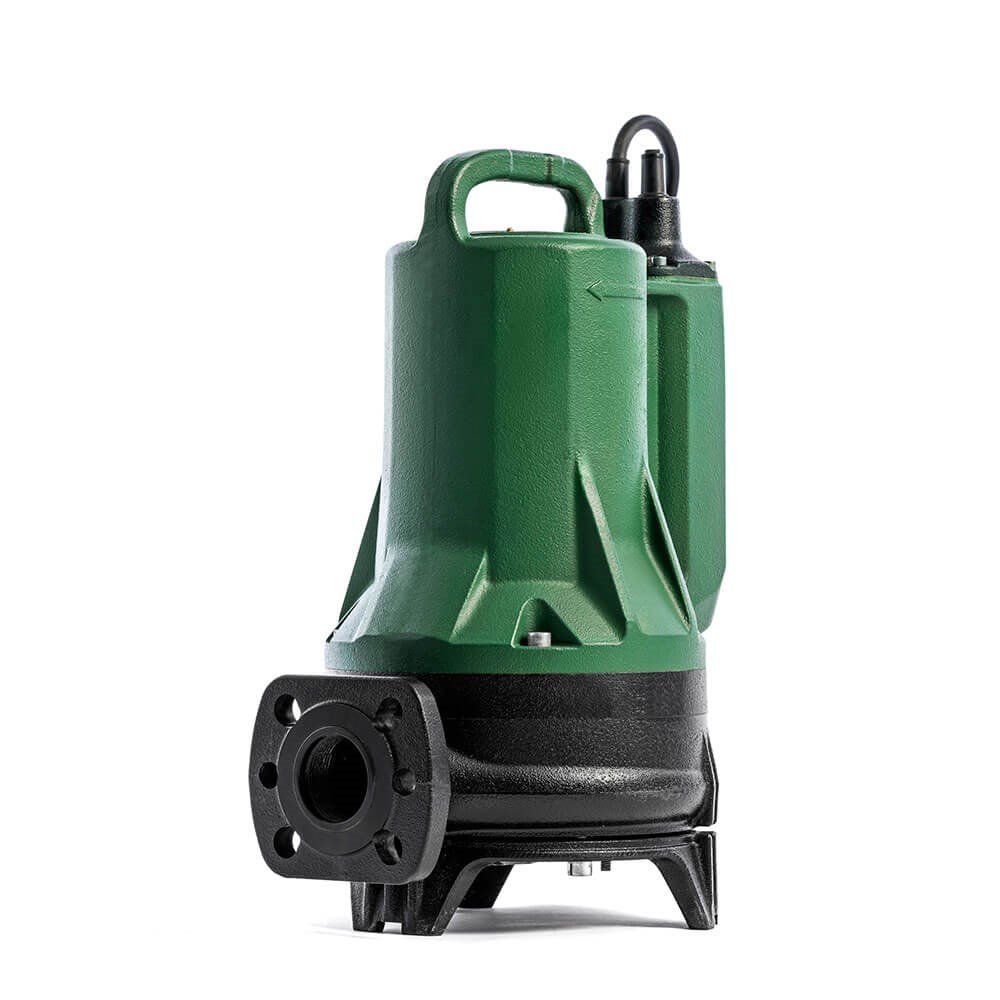

DAB-GRINDER15.11MEX - Grinder IECex Approved Submersible Pump 320L/m 24.9M 1.1kW 240V

Order Code: 809457

Print
Product Code
DAB GRINDER15.11MEX
RRP: $3630.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Bar 2.4
Flow Range Category d. 300 - 399 L/min
Flow Rate (L/min) 320
Kilo Watts 1.1 kW
Head Range Category a. 0 - 39 m
Max Head (m) 24.9
Volts 240 V
Pack Weight (KG):
35.00
Description

Grinder Pump

Max head 24.9m, max flow 320 L/m, 1-1/2"BSPF

Features
  • High resistance stainless steel grinder system
  • Suitable for the transfer of sewage water at high pressure or when narrow piping is needed to keep down system installation costs
  • Single-phase versions with starter and capacitor in a separate panel
  • Double silicon carbide mechanical seals are entirely enclosed in the oil chamber to avoid direct contact with the pumped liquid.
  • Motor shaft in anticorrosion stainless steel AISI 304
  • External cataphoresis and two component coating for corrosion resistance
  • Resin sealed cable gland
  • Compliant with waste water standards EN 12050
  • Pump body and impeller in cast iron, shredder in AISI 630
  • Threaded and flanged outlet
Warranty

2 Year Pump Parts and Labour Warranty
