Order Code: 711186

RRP: $3080.00 incl. GST Find Your Nearest Store

Technical Specifications

Brand	Zenit Pumps
Product Type	Submersible Pump
Suitable For	Dirty Water
Bar	1.53 Bar
Approval	IECex Zone 2 Approved
Flow Range Category	f. 500 - 999 L/min
Flow Rate (L/min)	690 L/min
Hp	2 Hp
Kilo Watts	1.5 kW
Head Range Category	a. 0 - 39 m
Max Head (m)	15.3 m
Port Size Outlet	2" BSPF outlet
Particle Size	50 mm
Volts	240 V
Warranty (months)	24 Months
Watts	1500 W

Downloads

Applications

Households
Strata corporations
water treatment plants
Car parks
Truck stops
Vehicle Workshops
Bus depots
Garages

Electromechanical assembly

Electromechanical assembly in EN-GJL-250 cast iron, for submerged operation, fitted with 2 (two) opposing silicon carbide mechanical seals in oil sump, and V-ring in direct contact with the liquid. Ecological dry motor. Pump body in single casting with motor casing.

Construction materials

Case	Cast iron EN-GJL 250
Impeller	Cast iron EN-GJL-250
Nuts and bolts	Stainless steel - Class A2-70
Standard gasket	Rubber - NBR
Shaft	Stainless steel - AISI 420
Paint type	Ecological bicomponent epoxy (medium thickness 80 µm)
Set of standard mechanical seals	Two silicon carbide mechanical seals (2SiC), V-ring

Zenit DG BluePRO Features

1. Lifting handle
Ergonomic aluminium alloy lifting and carrying handle, coated for excellent mechanical strength and corrosion resistance. Clip floatswitch adjustment.

2. Cable gland System
Innovative cable gland system with twin O-rings to ensure maximum tightness.

3. Motor and electrical accessories
Dry motor with thermal protections. Single-phase models with internal capacitor. Three-phase models with motor protection relay (option).

4. Mechanical seals
Two silicon carbide mechanical seals (2SiC), and V-ring in direct contact with the liquid.

5. Oil sump
Oil sump which guarantees longer mechanical seal lifetime, and is easily accessible thanks to a patented system to simplify maintenance procedures.

6. Breather
Breather which allows the air to be vented and ensure reliable pump priming even after long periods out of use.

7. Support foot
Reinforced technopolymer support foot with stainless steel plate (models 50, 75 and 100) or cast iron support foot (models 150 and 200).

8. Free passage
Full free passage allowing the expulsion of solids and preventing fouling of the impeller.

IECEx Zone 2 Approved

IECEx is the IEC System for Certification to Standards Relating to Equipment for Use in Explosive Atmospheres. It uses quality assessment specifications that are based on International Standards prepared by the International Electrotechnical Commission (IEC).

Zenit Submersible Pumps exceed the new standard.
As one of the leading names in water treatment technologies, this pump have been awarded the IECEx – the international certification covering the use of equipment and services in explosive conditions.

So what is a ‘hazardous area’?
You can’t be too careful in hazardous areas – which is any space where flammable liquids, vapours, gases or combustible dusts could occur in high enough quantities to cause a fire or even an explosion.
These include:

car parks
truck stops
vehicle workshops
bus depots
and garages

Spare Parts

Code

Part Number

Description

711360

ZEN-BEARING 6203ZZ

BEARING 6203ZZ

711022

ZEN2517028100000

CAPACITOR 30 UF

801156

ZEN601008001

KIT GASKET BLUE

710995

ZEN 230005040150000000

Mechanical Seal

711079

ZEN602008031

MECHANICAL SEAL ASSY

800235

ZEN-S2145113023903

SPARE BASE DGBLUEP150

Zenit Pumps Product Selection Tool

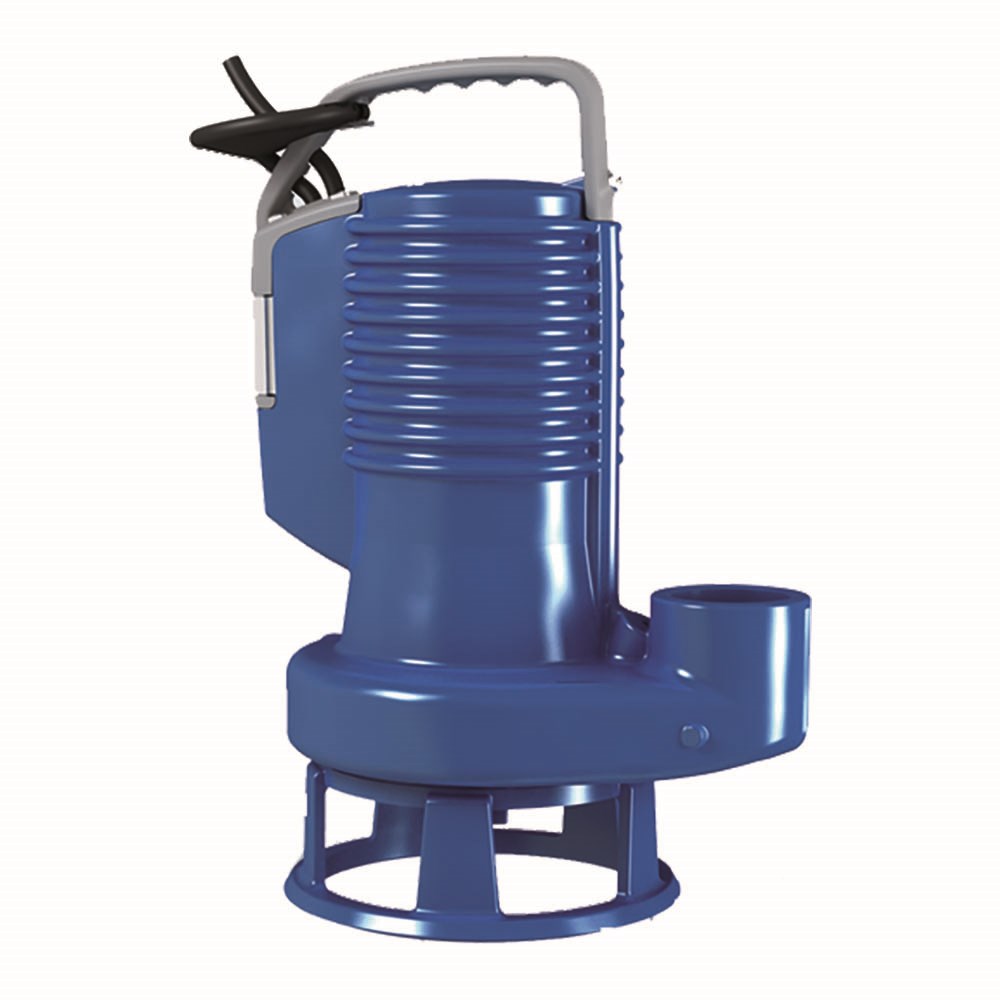

ZEN-DGBLUEP200/2/G50VMEX - PUMP SUBMERSIBLE IECEX DIRTY WATER INDUSTRIAL 690L/M 15.3M 1.5K

Order Code: 711186

Product Code

Technical Specifications

Pack Weight (KG):

Description

Warranty

Downloads

Product Information and Data Sheets

Spare Parts Information and Exploded Diagrams

Operation and Installation Manuals

Certificates & Compliance Information
