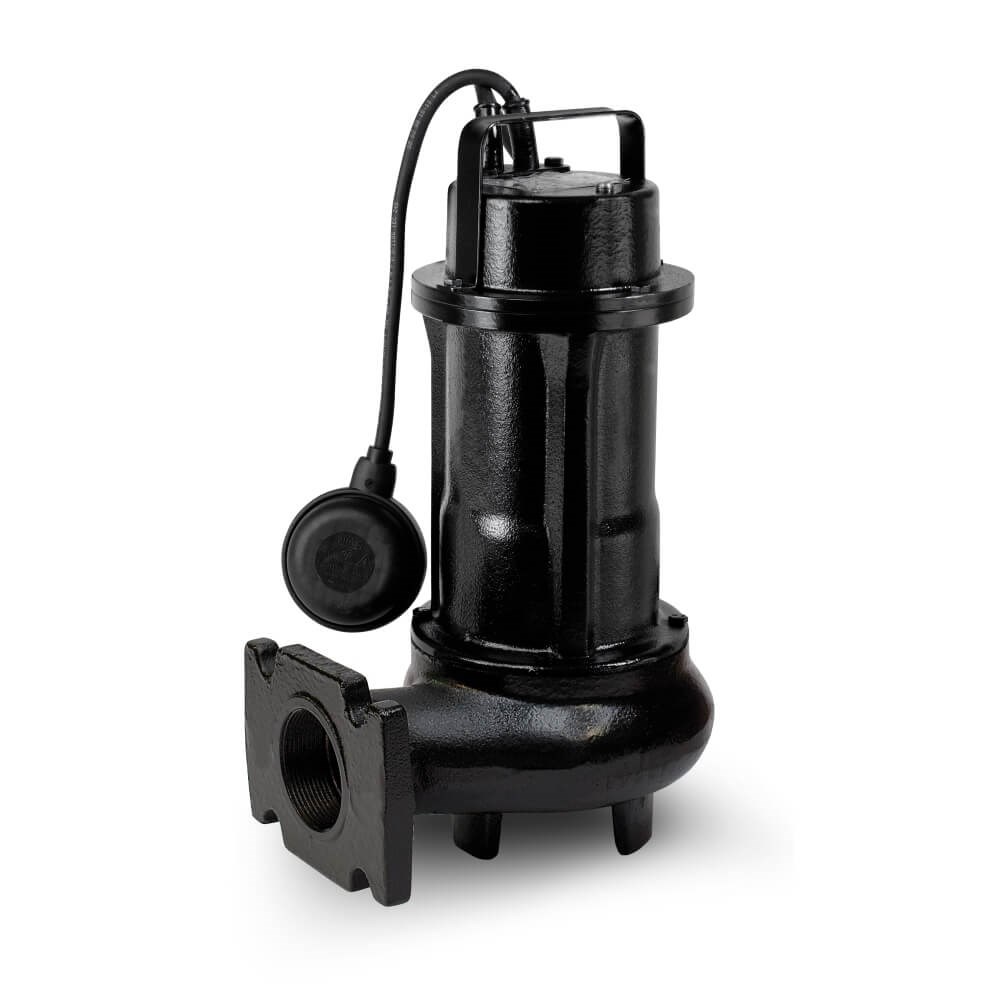

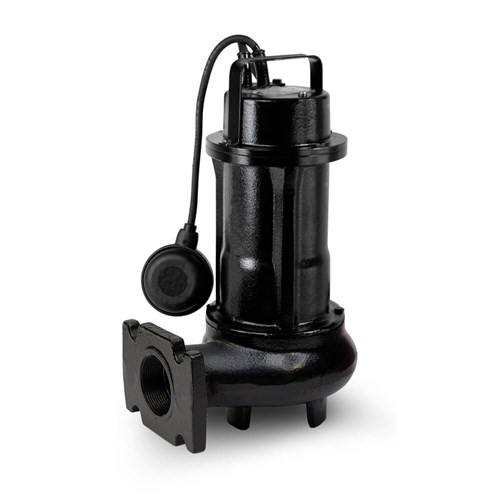

ZEN-DGE100/2/G50HTSIC - PUMP SUBMERSIBLE DIRTY WATER DOMESTIC 480L/M 12.5M 0.88KW 415V

Order Code: 711196

Print
Product Code
ZEN-DGE100/2/G50HTSIC A0
RRP: $2640.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand Zenit Pumps
Product Type Vortex Pump
Suitable For Dirty Water
Bar 1.25 Bar
Flow Range Category e. 400 - 499 L/min
Flow Rate (L/min) 480 L/min
Hp 1.2 Hp
Kilo Watts 0.88 kW
Head Range Category a. 0 - 39 m
Max Head (m) 12.5 m
Port Size Outlet 2" BSPF outlet
Powered Electric
Particle Size 50 mm
Volts 415 V
Warranty (months) 24 Months
Watts 880 W
Pack Weight (KG):
20.85
Description
ZENIT DGE Vortex Horizontal Outlet

Suitable with slightly soiled biological wastewaters and sewage. Suitable for domestic and residential use.

0.88kW, 1.2hp, 415V without float switch, max hd 12.5m, max flow 480L/m, 2" BSPF outlet. Particle size 50mm.
3 phase pumps require contactor and overload.

Warranty

2 Year Zenit Warranty

Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagrams v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Spare Parts
Code
Part Number
Description
711360
ZEN-BEARING 6203ZZ
BEARING 6203ZZ
710933
ZEN12101020311240
MOTOR CASE DRE200
711361
ZEN-EDR100M-28
ORING 110X3.53
711024
ZEN270530609202000000
WASHER
