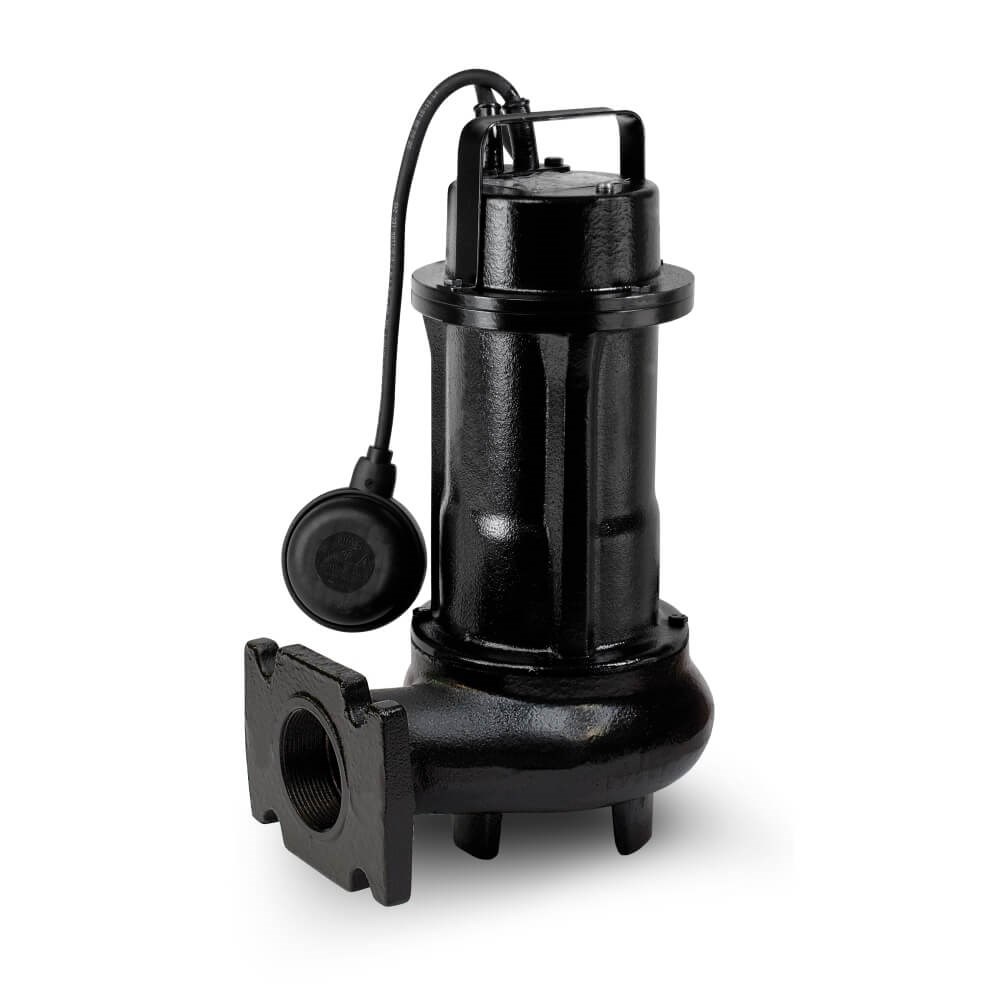

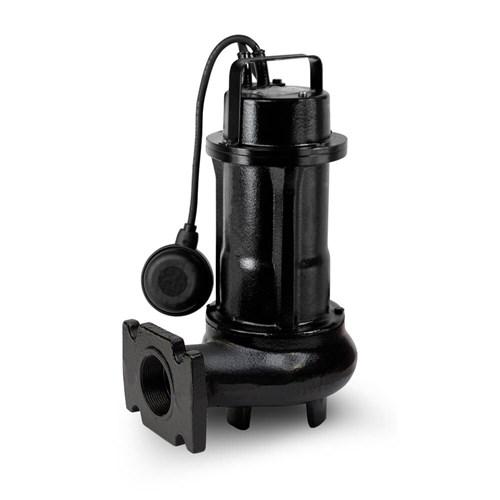

ZEN-DGE200/2/G50HMSIC - PUMP SUBMERSIBLE DIRTY WATER DOMESTIC 600L/M 15.5M 1.5KW 240V

Order Code: 711204

Print
Product Code
ZEN-DGE200/2/G50HMSIC
RRP: $3520.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand Zenit Pumps
Product Type Vortex Pump
Suitable For Dirty Water
Bar 0.15 Bar
Flow Range Category f. 500 - 999 L/min
Flow Rate (L/min) 600 L/min
Hp 2 Hp
Kilo Watts 1.5 kW
Head Range Category a. 0 - 39 m
Max Head (m) 15.5 m
Port Size Outlet 2" BSPF outlet
Powered Electric
Particle Size 50 mm
Volts 240 V
Warranty (months) 24 Months
Watts 1500 W
Pack Weight (KG):
22.25
Description
ZENIT DGE Vortex Horizontal Outlet

Suitable with slightly soiled biological wastewaters and sewage. Suitable for domestic and residential use.

1.5kW, 2.0hp, 240V without float switch, max hd 15.5m, max flow 600L/m, 2" BSPF outlet. Particle size 50mm.

Warranty

2 Year Zenit Warranty

Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagrams v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
Spare Parts
Code
Part Number
Description
711360
ZEN-BEARING 6203ZZ
BEARING 6203ZZ
710933
ZEN12101020311240
MOTOR CASE DRE200
711361
ZEN-EDR100M-28
ORING 110X3.53
802377
ZEN-230801201001000000
STATOR DRE200M
711024
ZEN270530609202000000
WASHER
