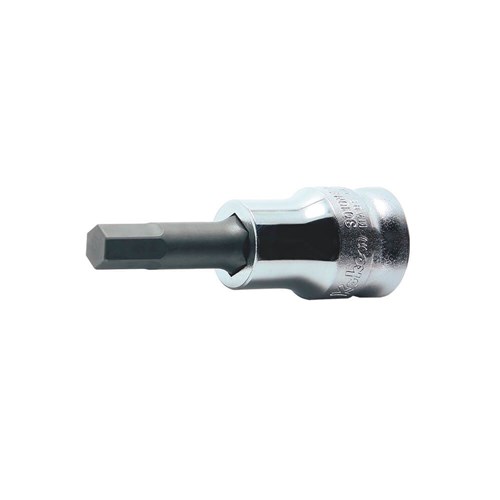

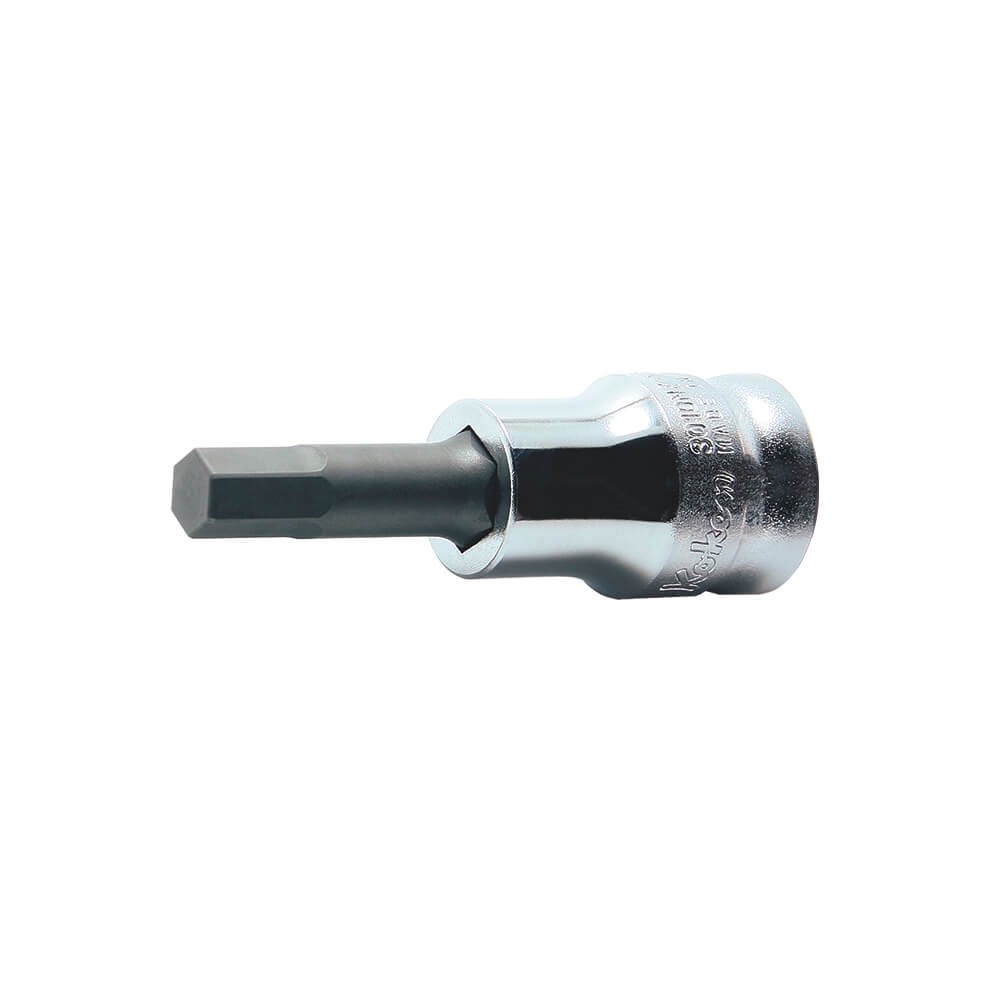

KO3010MZ5004H - Ko-Ken Z Series Inhex Bit Socket3/8" Drive 4mm

Order Code: 805870

Print
Product Code
KO3010MZ5004H
RRP: $24.30 incl. GST
Find Your Nearest Store
Technical Specifications
Brand Ko-Ken
Product Type Individual
Type 50mm Long
Suitable For Hand Tool
Drive 3/8"
Length 50mm
Series Z Series
System of Measurement Metric
Size Range 3 - 19mm
Size 4mm
Style Inhex
Pack Weight (KG):
0.00
Description
Ko-Ken Z Series Inhex Bit Socket 3/8" Drive 4mm
Features

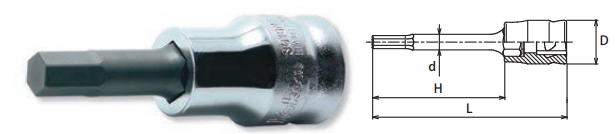

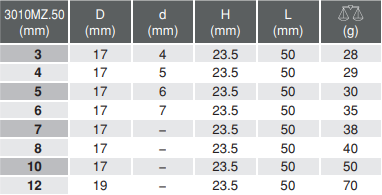

Z-Series 3010MZ.50

COMPACT
Ko-Ken Z Series - Compact

2400MZ, 3400MZ and 4400MZ are designed 5-14mm shorter than standard 2400M, 3400M and 4400M. Ideal for working in confined and tight areas.

TOLERANCE - Hexagon Opening
Tolerance Hexagon Opening

Ko-ken standard sockets are manufactured according to DIN/ISO standards. The tolerances of Z-Series sockets are precisely controlled to achieve a more positive fit between bolt and socket.

TOLERANCE - Square Drive
Tolerance Square Drive

Manufacturing tolerance of Male and Female Square are precisely controlled to achieve a more secure fit between Socket and Handle.

BALL HOLDING GROOVE
Tolerance Square Drive

Original Ball Holding system is applied on Z-series. This mechanism gives secure connection between Socket and Handle.

RATCHET HANDLE
Tolerance Square Drive

Smaller head with 36 tooth gear and light ratchet movement allow working in narrow space and confined areas.
