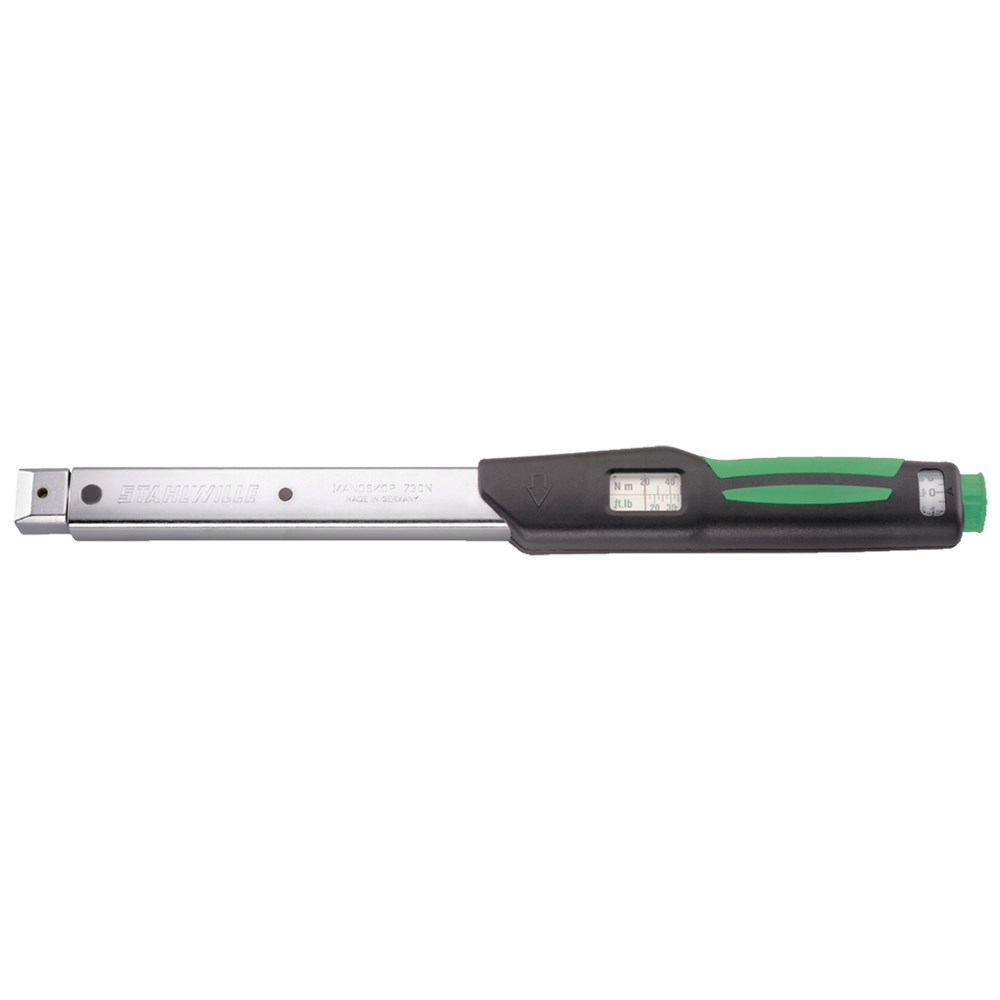

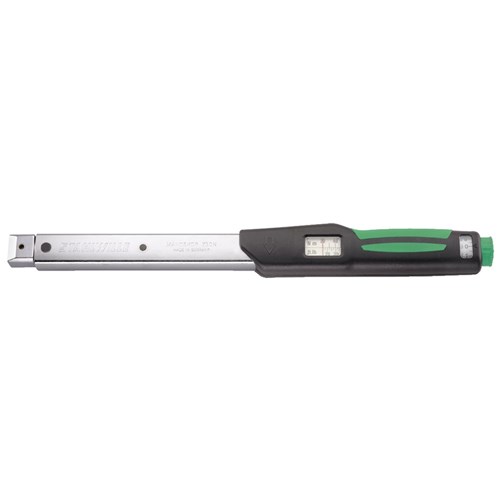

MANOSKOP® 730N
Mechanical torque wrench
Benefits at a glance:
- Accurate one-handed setting – quick & easy control using the knob at the end of the handle
- Audible setting positions
- Fail-safe setting mechanism in the knob
- Clearly readable twin scale (N m and ft.lb)
- Noticeable double signals when the preset torque is reached
- Square drives with
- QuickRelease safety locks – for 9x12, 14x18 and 22x28 mm
- Handle is resistant to oils, grease, fuels, brake fluids and Skydrol
- Deviation of indication ± 3%
Basic wrenches with tool carrier for insert tools
Clicking torque wrench with mount for interchangeable socket tools, rapid, accurate setting using QuickSelect quick-action adjuster, with QuickRelease safety lock, double stop signals, very clear twin scales with colour coded N m/ft.lb and ft.lb/inch.lb. markings and long-term repeated accuracy.
The measuring element is only under load while force is being applied, no need for manual reset to zero. All the sensitive components are protected by the sturdy housing. The 2-component handle with its ergonomically designed green softer layers is resistant to oils, grease, fuels, brake fluids and Skydrol. If the wrench is misused – e.g. to force seized-up screws – the measuring mechanism is deactivated.
The swap-over inserts can also be used to apply torque in an anticlockwise direction. Easily adjustable without disassembly, e.g. using testers No-798, No-799 or No-7707 W.
Guaranteed maximum accuracy deviation ± 3%. With certificate.
