DP Mono Filter Housing 10" Std 1" In/Out with Spanner & Bracket

Order Code: 807567

Print
Product Code
ATL-KITDP10MONO1INAB
RRP: $126.50 incl. GST
Find Your Nearest Store
Product Documents
Technical Specifications
Brand Atlas Filtri
Product Type Std Housings
Material PET
Inlet/Outlet 1"
Max Pressure (bar) 8
Min Temp (degrees celsius) 4
Max Temp (degrees celsius) 45
Application Underbench
Filter 10" Std
Pack Weight (KG):
0.97
Description

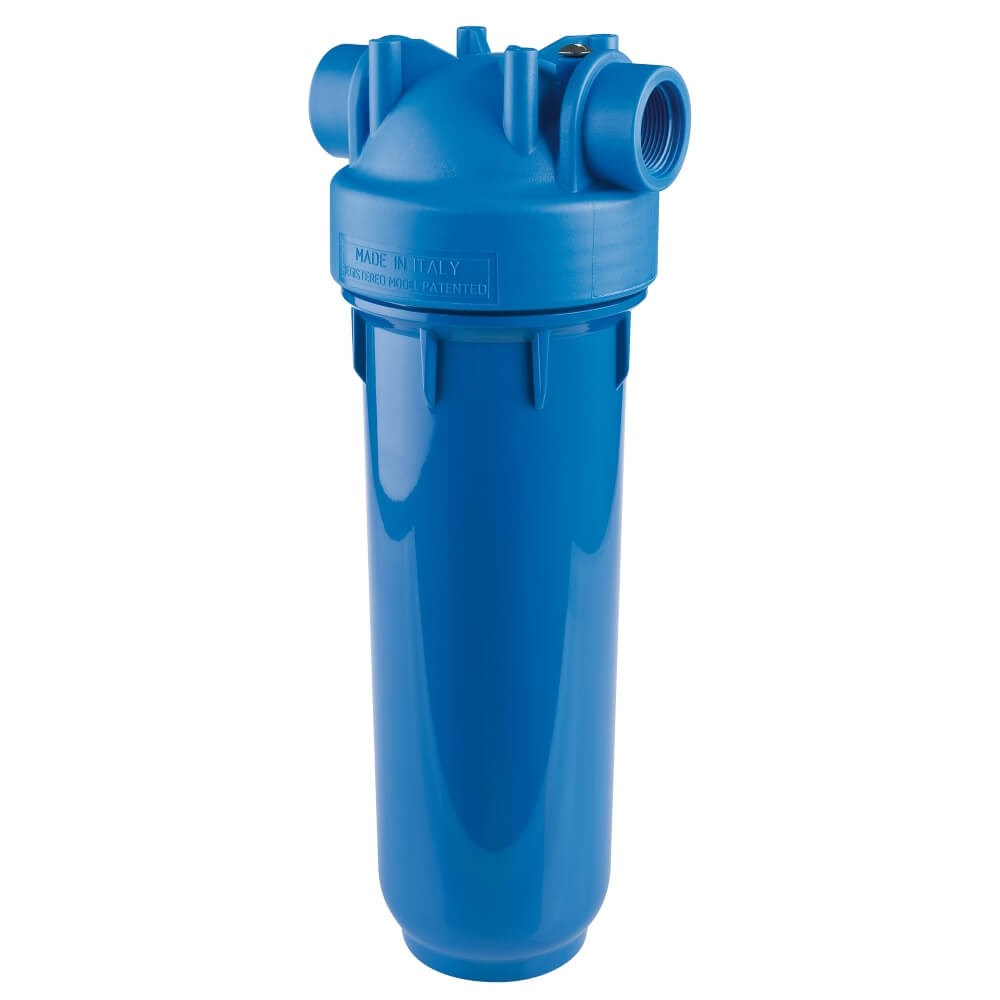

A Mono 10” Standard Filter housing, with 1” in/out plastic BSP threads.

Comes complete with bracket, spanner and o-ring  lubricant.

Designed to accept 20”x 2.5” filter cartridges.

These are most commonly used domestic underbench or light commercial applications

Features

Italian made, with an international patent for superior construction, Atlas Filtri Standard Housings are high quality, environmentally friendly housings suitable for a wide range of standard flow/capacity filtering needs.

These are available in:

  • Mono - single filter housing
  • Duo - Double Filter housing with moulded head
  • Trio – Triple - Filter housing with moulded head

All Atlas Filtri BIG Housings come with:

  • Bracket
  • Spanner
  • Lubrikit (O-ring lubricant)
Working Conditions
Max Working Pressure8bar (116 psi)
Max Working Temperature45°C (113°F)
Min Working Temperature4°C (39.2°F)
Downloads
Product Brochures
Download Brochures v1.0

Consumables & Accessories

Nitrate Reduction Filter 10" Std
Nitrate Reduction Filter 10" Std ATL-QA10AFSXTS 807325
Spare Parts
Code
Part Number
Description
807246
ATL-10DIFFUSERTUBE
Diffuser Tube for DP 10" Std Filter Housing
807247
ATL-LUBRIKIT
Lubrikit O-Ring Lubricant Single Serve
807240
ATL-XSPANNER
Spanner for DP 10" and 20" Std Filter Housing
