DP Mono Filter Housing 20" Std 1" In/Out with Spanner & Bracket

Order Code: 807568

Print
Product Code
ATL-KITDP20RTMONO1INAB
RRP: $143.00 incl. GST
Find Your Nearest Store
Product Documents
Technical Specifications
Brand Atlas Filtri
Product Type Std Housings
Material PET
Inlet/Outlet 1"
Max Pressure (bar) 8
Min Temp (degrees celsius) 4
Max Temp (degrees celsius) 45
Application Whole Supply
Filter 20" Std
Pack Weight (KG):
1.77
Description

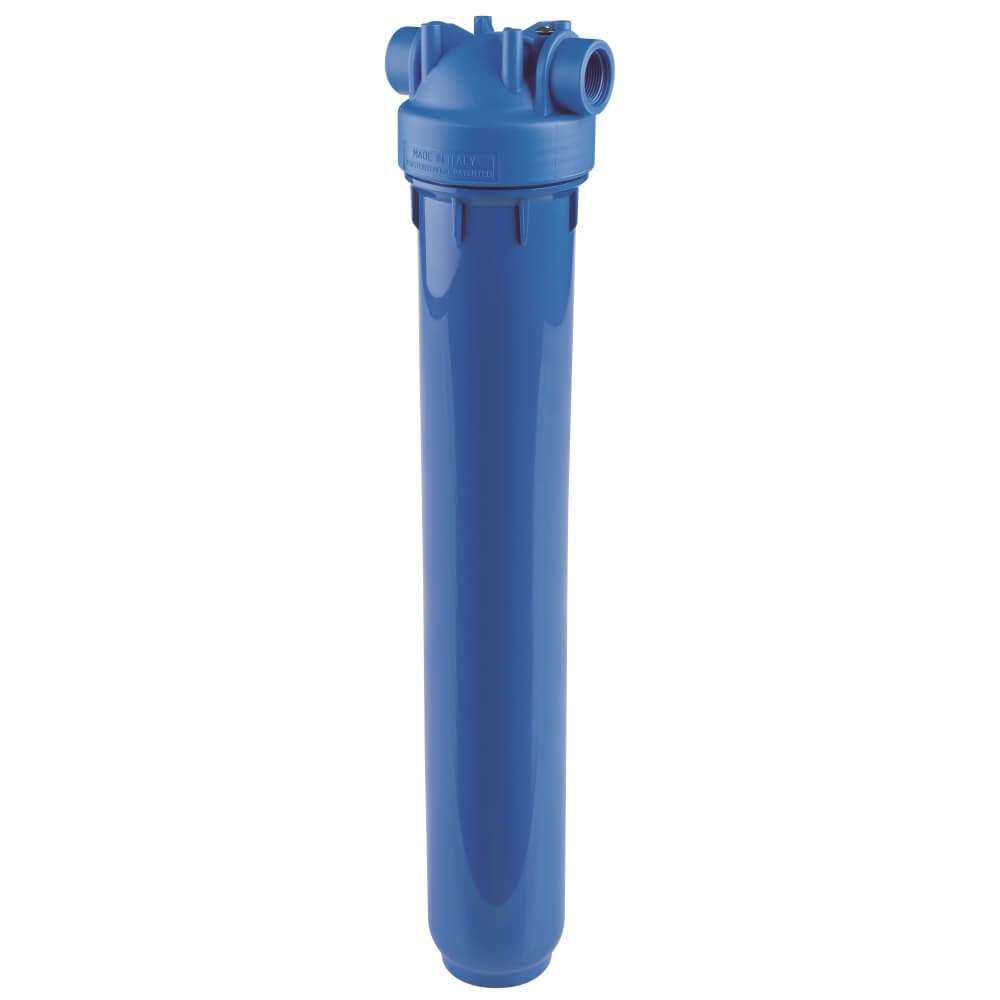

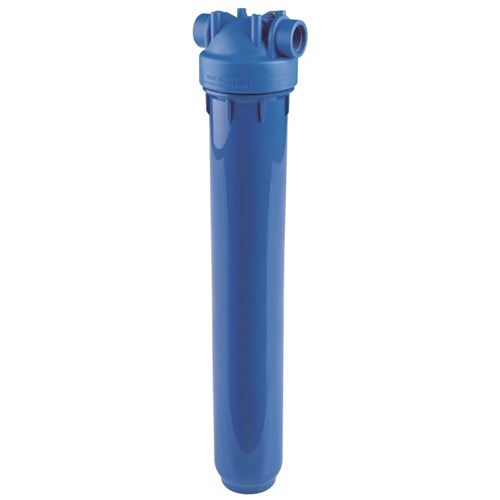

A Mono 20” Standard Filter housing, with 1” in/out plastic BSP threads.

Designed to accept 20”x 2.5” filter cartridges.

These are most commonly used domestic, commercial and industrial applications

Features

Italian made, with an international patent for superior construction, Atlas Filtri Standard Housings are high quality, environmentally friendly housings suitable for a wide range of standard flow/capacity filtering needs.

These are available in:

  • Mono - single filter housing
  • Duo - Double Filter housing with moulded head
  • Trio – Triple - Filter housing with moulded head

All Atlas Filtri BIG Housings come with:

  • Bracket
  • Spanner
  • Lubrikit (O-ring lubricant)
Working Conditions
Max Working Pressure8bar (116 psi)
Max Working Temperature45°C (113°F)
Min Working Temperature4°C (39.2°F)
Downloads
Product Brochures
Download Brochures v1.0

Consumables & Accessories

Similar Products

Spare Parts
Code
Part Number
Description
807246
ATL-10DIFFUSERTUBE
Diffuser Tube for DP 10" Std Filter Housing
807247
ATL-LUBRIKIT
Lubrikit O-Ring Lubricant Single Serve
807240
ATL-XSPANNER
Spanner for DP 10" and 20" Std Filter Housing
