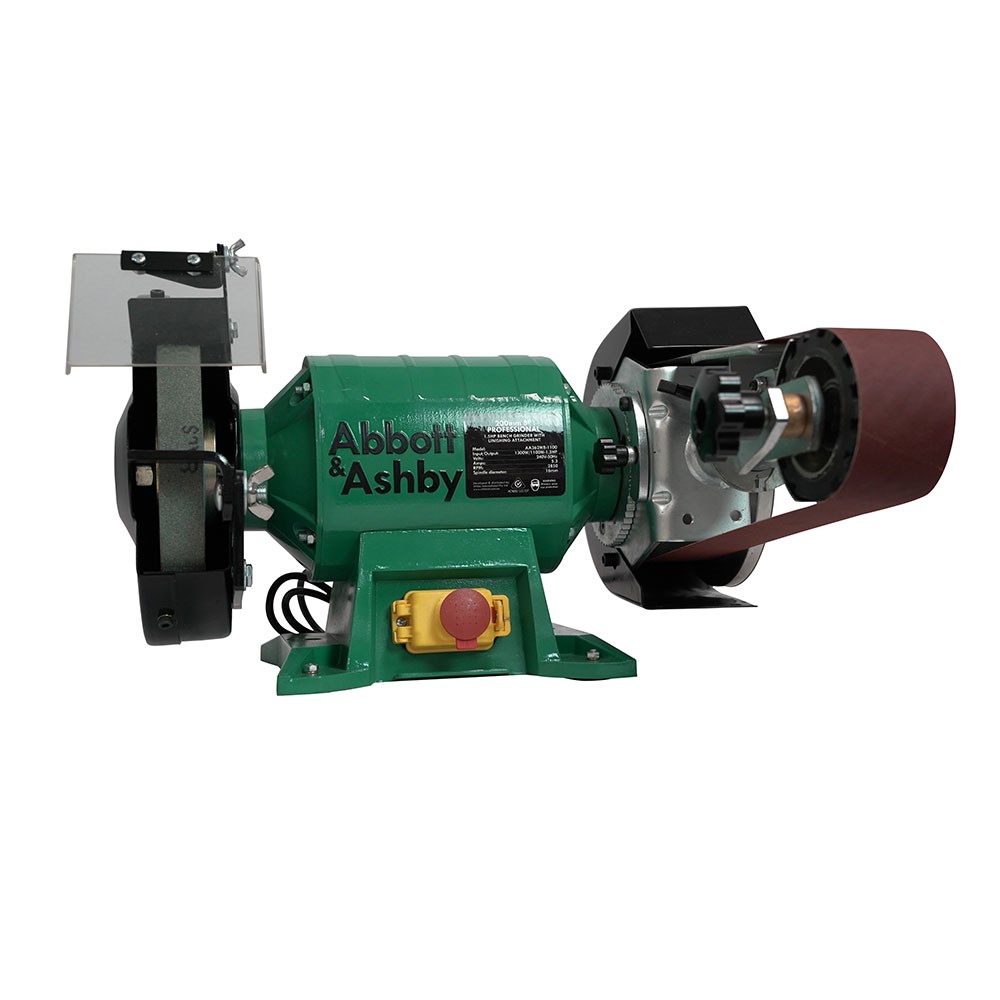

Abbott & Ashby 1100W 200mm (8") Professional Bench Grinder with AA362 Linishing Attachment

Order Code: 811514

Print
Product Code
AA362W8-1100
RRP: $669.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand Abbott & Ashby
Product Type Professional Range
Type Machine
Amps 5.3 Amps
Size 200mm
Volts 240 V
Wheels 200mm / 8"
Watts 1100 W
Pack Weight (KG):
23.00
Description
  • TRUE 1.5HP MOTOR: Delivers 41% more torque for effortless material removal and superior performance.
  • RUNS COOLER: Improved sealed cooling system keeps operating temperatures up to 9% cooler than competitors, reducing wear and tear.
  • ENHANCED DURABILITY: High-tensile cast aluminum base and body provide superior strength while maintaining a lighter weight.
  • NVR & E-STOP SWITCH: Ensures safety by cutting power entirely during outages and preventing accidental restarts.
  • MORE POWER FOR BIG JOBS, LESS WEAR FOR EVERYDAY USE: Ideal for professional and industrial applications.
  • FACTORY FITTED AA362 LINISHER:
    • Patent pending design allows for fast changes to the working angle without disassembly in 6° increments.
    • Top platen can be used for flat surface grinding and can be moved out of the way for convenient free strapping.

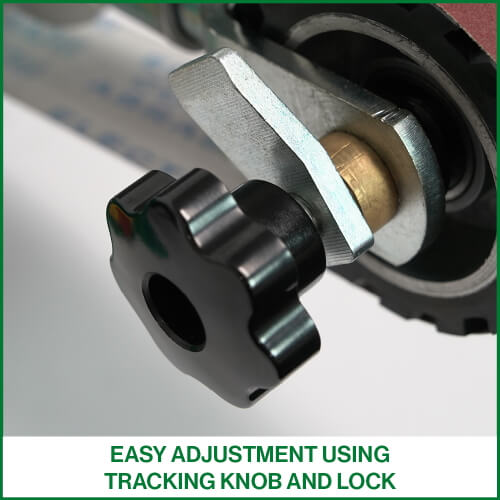

    • Easy belt tracking adjustment knob and lock.
    • Fast belt changes with patent pending self-locking push in push out arm.
Features

Since its inception, Abbott & Ashby have designed machines that can stand up to the toughest jobs. Our new Professional range of products represent the next step forward in durability, performance and innovation.

DURABILITY: The Professional range has an improved motor design - this means the machines handle tough loads better, run cooler for longer, and also use improved materials to strengthen the base and body of the machine.

PERFORMANCE: The machines are designed around a true 1.5HP (1100W) motor, delivering up to 41% more torque than leading competitors. This motor does not get bogged down by the heavy jobs and allows for quick material removal. Our linisher models can get to speed when fitted with polishing belts without any assistance, demonstrating the raw power of the machine.

INNOVATION: The base and body of our machines utilise cast high tensile aluminium instead of cast iron to improve the overall strength of the machine, representing the latest in innovative materials for bench tools. NVR & E-Stop switch installed into the machine as standard, while the improved sealed cooling system keeps operating temperatures up to 9% cooler than leading competitors.

Abbott & Ashby AA362W8-1100
Input/Output 1300W/1100W - 1.5HP
Amps 5.3
Volts 240V - 50Hz
RPM 2850
Wheel Size 200mm / 8”
Spindle Diameter 16mm
Length 255mm
Linishing Surface Belt: 915 x 50mm (36 x 2")
Disc: 178mm (7")
Contact Wheel: 89mm (3 ½")
Width 443mm
Height 490mm
Barcode 9312198865929
