DAB-ESYBOX - PUMP VARIABLE SPEED PRESSURE SYSTEM 120L/MIN 61M 1.55KW 240V

Order Code: 800621

Print
Product Code
DAB-ESYBOX
RRP: $3465.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Product Type Pressure System
Suitable For Clean Water
Bar 6.1 Bar
Approval Approved For Drinking Water
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 120 L/min
Hp 2.1 Hp
kPa 618 kPa
Kilo Watts 1.55 kW
Head Range Category c. 60 - 99 m
Max Head (m) 61 m
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPF outlet
Powered Electric
Taps 12 Taps
Volts 240 V
Warranty (months) 24 Months
Watts 1550 W
Pack Weight (KG):
27.00
Description
Self Priming Variable Frequency Drive Pump

1.55kW, 2.1hp, 240V, Max Head 61m, Max Flow 120L/m, 12 taps. Ports 1" BSPF In, 1" BSPF Out
Features
e.sybox is an integrated system for water pressure boosting in domestic and residential applications.Consists of self-priming multistage pump, electronics for control and management, pressure and flowsensors, a high-resolution LCD orientable display and integrated expansion vessel of 2 litres.

Special Features:
  • Energy efficient
  • It can be installed in vertical or horizontal position, in a ventilated room or in a recess
  • Quiet operation - 45 dB in standard use
  • Saves 30% of space in comparison with a traditional system
  • Easy maintenance
  • Wireless device to facilitate the creation of pressure booster sets and for connection to other devices
2 Year DAB Pumps Warranty

Product Range Brochure
Product Video


Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...

Spare Parts
Code
Part Number
Description
802329
DABSSP00000132
802342
DAB SP00000147
802326
DABSSP00000129
802346
DAB SP00000153
802339
DABSSP00000144
802337
DABSSP00000142
802352
DAB SP00000161
802327
DABS SP00000130
802325
DABSSP00000128
802333
DABSSP00000136
802347
DAB SP00000155
802343
DAB SP00000148
802261
DABSSP00000154
802332
DABSSP00000135
802338
DABSSP00000143
802344
DAB SP00000150
802351
DAB SP00000160
802328
DABSSP00000131
802350
DAB SP00000159
802341
DAB SP00000146
DAB Product Selector

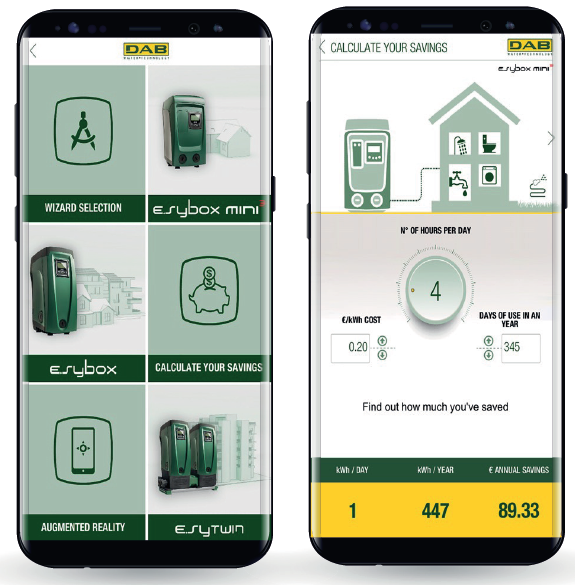

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.
