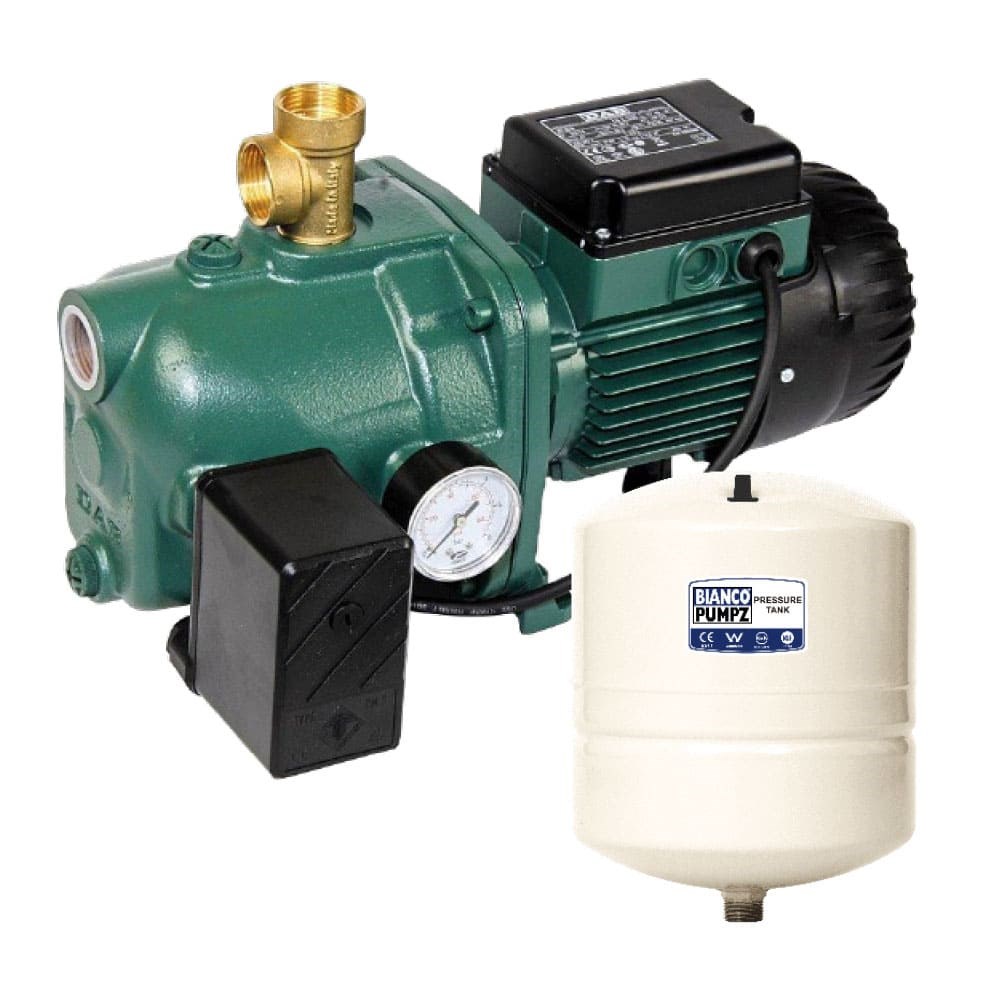

DAB-132MP - PUMP SURFACE MOUNTED JET WITH PRESSURE SWITCH 80L/MIN 48M 1.0KW 240V +18L TANK

Order Code: 600166

Print
Product Code
DAB-132MP-18V
RRP: $1210.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand DAB Pumps
Suitable For Clean Water
Bar 4.8 Bar
Approval Approved For Drinking Water
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 80 L/min
Hp 1.36 Hp
Kilo Watts 1 kW
Head Range Category b. 40 - 59 m
Max Head (m) 48 m
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPM outlet
Powered Electric
Taps 8 Taps
Warranty (months) 24 Months
Volts 240 V
Watts 1000 W
Pack Weight (KG):
0.00
Description

DAB Self Priming Cast Iron Jet Pressure Pumps

1.0 kW, 1.36 hp, 240V, Automatic with pressure switch, max hd 48m, max flow 80L/m
Includes a 18 Pressure Tank

Pressure Tank

Bianco Tanks are highly constructed pressure tanks suitable for most domestic and commercial applications.

  • Nominal volume: 18L
  • Nominal Draw-off: 6L
  • Continuous max. temp 90°C
  • Continuous max. pressure: 10 Bar (145PSI)
  • Pre-charge: 4 Bar (58PSI)
  • Diameter: 279 mm
  • Height: 375mm
  • Net Weight: 3.4Kg
  • System Connection: GI
  • Colour: Almond
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...

WaterMark Approved

WATERMARK APPROVAL - WMKA00105 to AS/NZS3499

The WaterMark Certification Scheme is a mandatory certification scheme for plumbing and drainage products to ensure that plumbing and drainage materials and products are fit for purpose and appropriately authorised for use in plumbing installations.

The Plumbing Code of Australia requires certain plumbing and drainage materials and products to be certified and authorised for use in a plumbing or drainage installation. These materials and products are to be certified through the WaterMark Certification Scheme and listed on the WaterMark Product Database.

WaterMark Approval Logo

In order to achieve Watermark Certification, the subject material or product must:

  • be tested by a recognised testing laboratory;
  • comply with an approved specification (either a relevant existing standard or an approved WaterMark Technical Specification);
  • be manufactured in accordance with an approved Quality Assurance Program; and
  • carry a warranty.

Materials and products complying fully with the applicable requirements of the WaterMark Certification Scheme are then eligible to be certified by a WaterMark Conformity Assessment Body (WMCAB) and listed on the WaterMark Product Database.

Certified materials and products are identifiable by the WaterMark trademark, which must be displayed on the material or product upon the granting of a WaterMark Certificate of Conformity.

Read more about WaterMark Approvals

You may also need these:

Spare Parts
Code
Part Number
Description
702135
DABSR00004811
702109
DABSR00004187
702163
DABSR00010751
702181
DABSR00010362 25UF PRONG
702158
DABSR00005107
702121
DABSR00004650
702084
DABSR00004017
702182
DABSR00005141
702205
DABSR00005192
702206
DABSR00005193
702085
DABSR00004018
702076
DABSR00004000
702119
DABS R00009575
702083
DABSR00004016
702203
DABSR00005187
DAB Product Selector

DNA (DAB Navigator Application) lets you search pumps by hydraulic performances, model or article number. You can obtain data sheets, spare parts information, user guides and other technical documentation.

The free registration allows you to save projects and add custom articles to your quotations.
