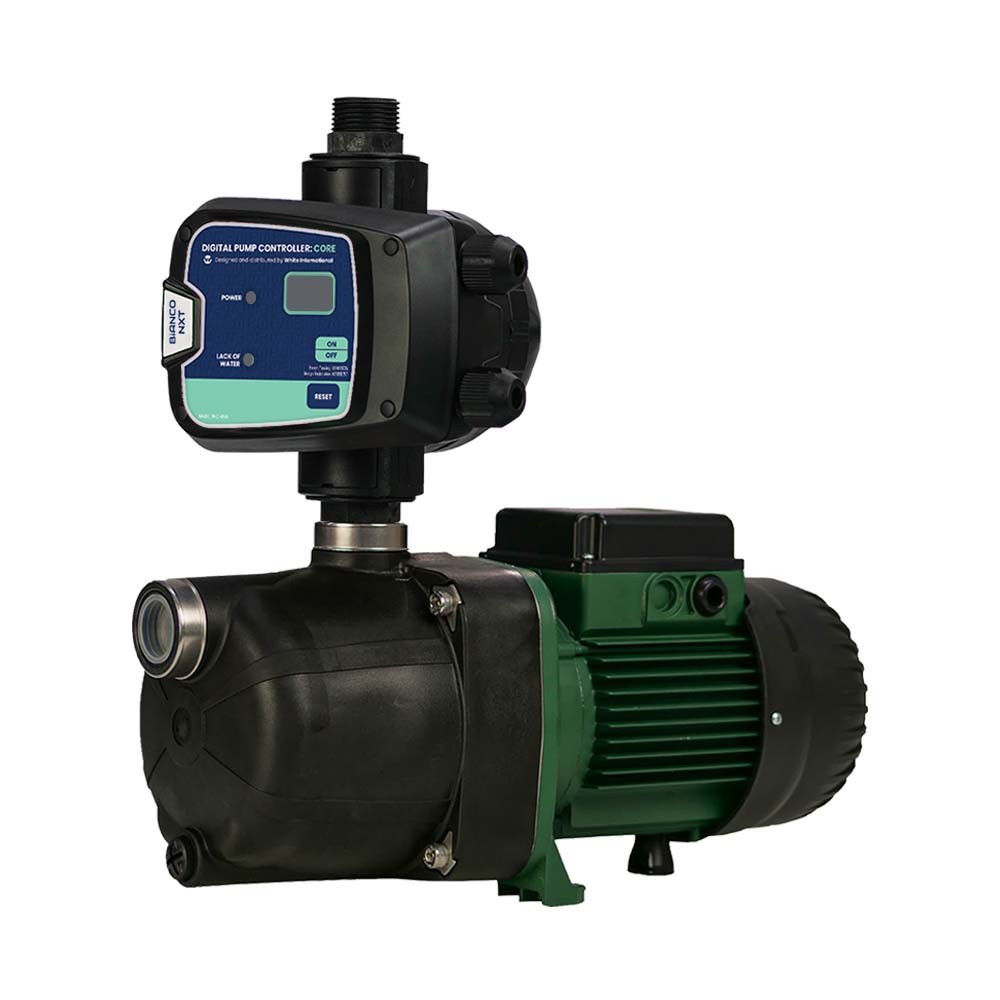

DAB-JETCOM82NXT - Technopolymer Surface Mounted with nXt Controller 47m 0.6kW 240V

Order Code: 808409

Print
Product Code
DAB-JETCOM82CORE
RRP: $825.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Pressure System
Suitable For Clean Water
Bar 4.6 Bar
Approval Approved For Drinking Water
Flow Range Category a. 0 - 99 L/min
Flow Rate (L/min) 60 L/min
Hp 0.8HP
kPa 461kpa
Kilo Watts 0.6 kW
Head Range Category b. 40 - 59 m
Max Head (m) 47m
Port Size Inlet 1" BSPF inlet
Port Size Outlet 1" BSPM outlet
Powered Electric
Taps 6 Taps
Warranty (months) 24 Months
Volts 240 V
Watts 600 W
Pack Weight (KG):
10.00
Description
DAB Surface Mounted - Jet Pump with NXT intelligent 1 mode controller

Suitable for water supply applications with suction wells, water supply and boosting of domestic systems, agricultural and gardening applications.

0.6kW, 0.8hp, 240V, max hd 47m, max flow 60L/m, 6 taps
Ports 1" BSPF In, 1" BSPM Out

Warranty
2 Year DAB Pumps Warranty
Controller

This pump includes the Bianco iCON nXt series of pump controller.

The nXt Controller is designed and tested in Australia to ensure operation in the toughest of environments, combining innovative technology with robust proven architecture to guarantee constant supply of pressurised water when and where you need it the most.



Controller Features
  • Digital display gives you a real time indication of system pressure
  • Anti-cycle Protection
  • Dry run protection with auto restart function that tests for water availability every 24hrs
  • Anti-seize function if pump has not operated for last 24 hours
  • Controller automatically restarts pump after a power failure
  • Easy assembly and removal using push-n-connect fitting with U clip
  • Complies to AS/NZ 4020 drinking water standard
  • Over pressure protection turns pump off when 10 bar is reached
  • Overload protection


Controller Flow Curve


Controller Brochure
View Brochure


nXt Controller Data
Function ON/OFF
Modes 1
Size 1.5Kw
Rated Voltage 220-240V AC
Max Amps 10
Rated Power 1500w
Rating IP65
Union Size 1"
Start Pressure 2.2 bar (32PSi)
Stop Pressure on no flow
Max Pressure 10 bar (145PSI)
Max Liquid Temp 40°C
Cable to Pump Plug and Play
Flylead for Pump When sold as control only
Power Cable 10AMP
Communication -
Accessories (Sold Separately) -
1 ¼” Union Kit
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...
