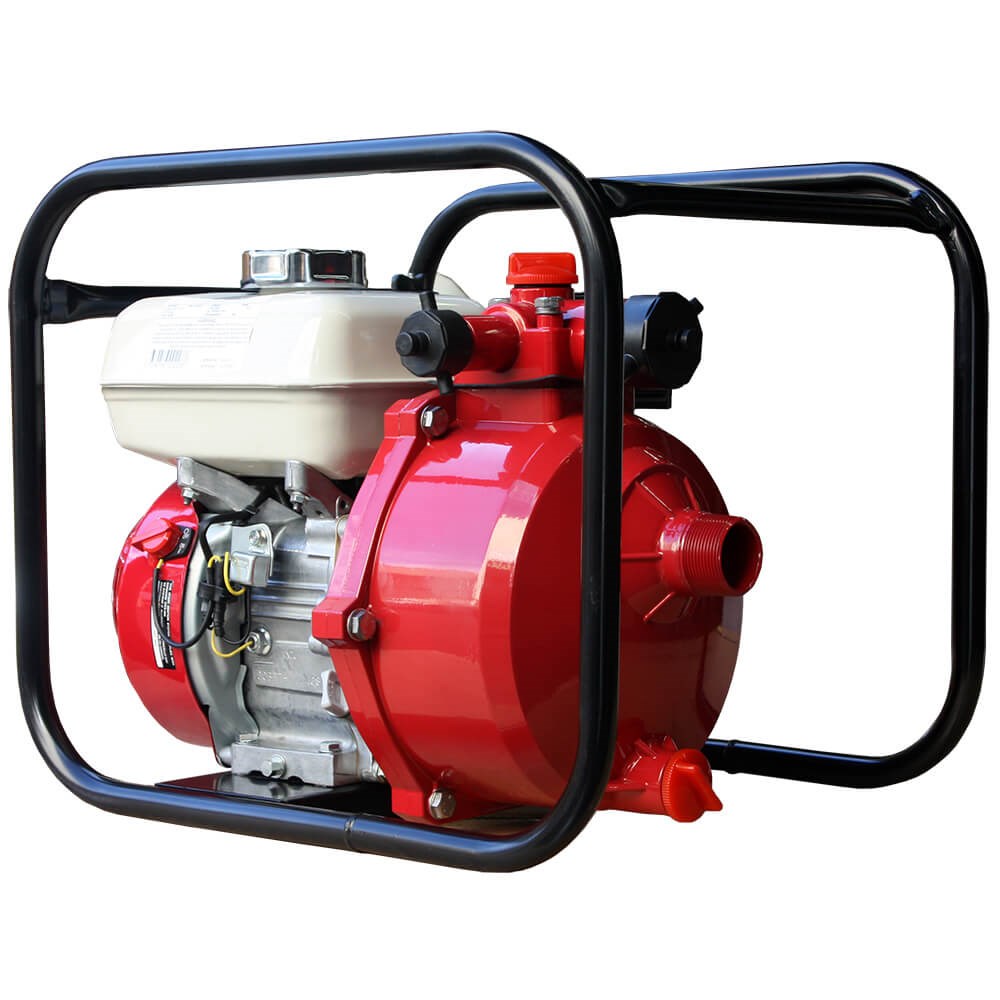

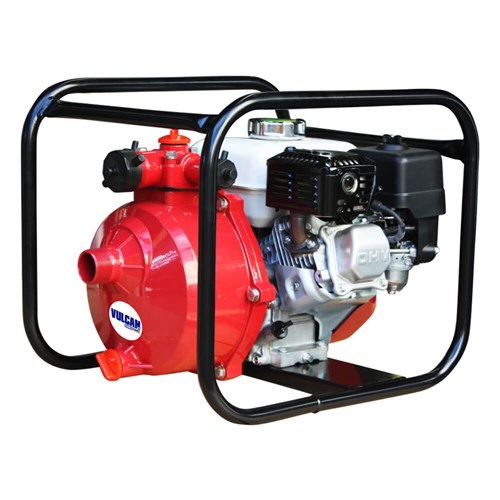

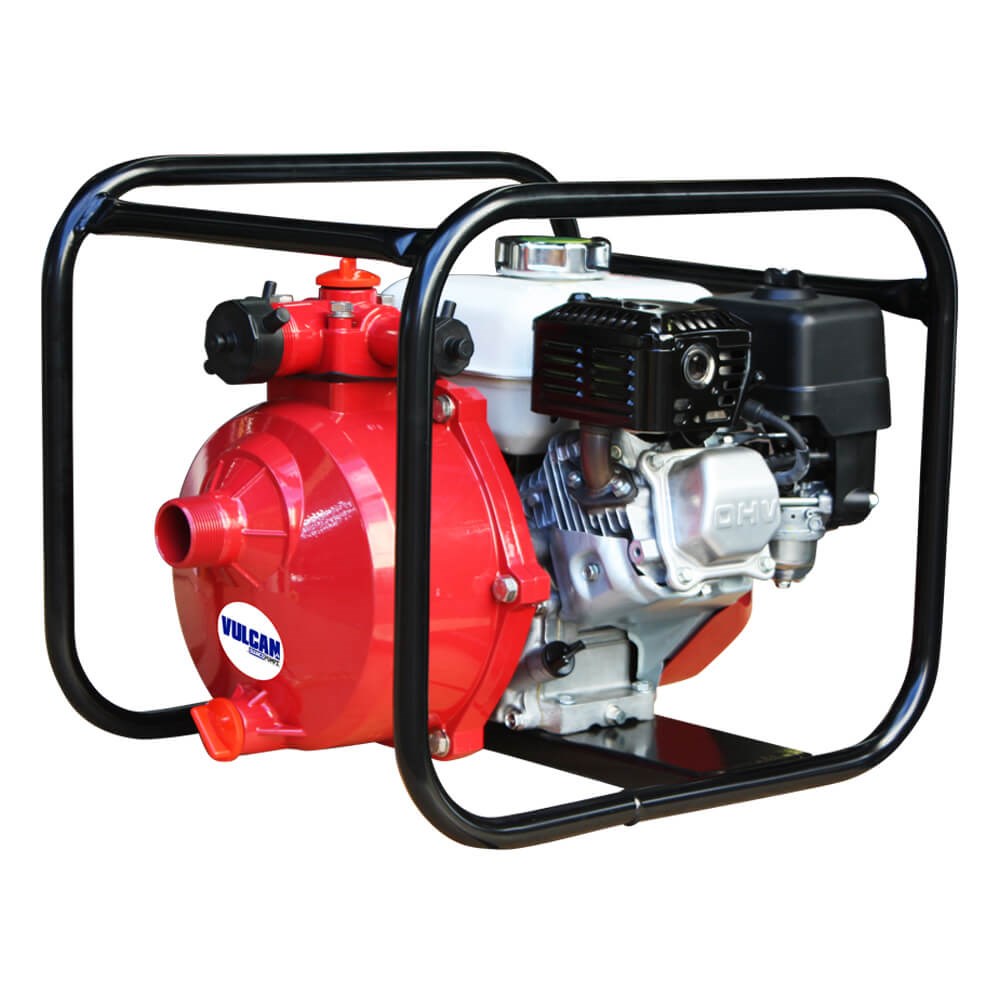

BIA-MH15SHP - Bianco Vulcan Engine Driven Fire Pump - Powered by Honda GX160

Order Code: 809993

Print
Product Code
BIA-MH15SHP
RRP: $1760.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand Bianco Pumpz
Product Type Engine Driven Pump
Suitable For Water Transfer
Fuel Petrol
Hp 5.5
Max Flow (L/min) 390
Max Head (m) 74.5
Port Size Outlet 1 x 1-1/2" + 2 x 1"BSPM
Pack Weight (KG):
24.00
Description
Bianco Vulcan HONDA GX160 Fire Fighting Pump

Max head 74.5m, max flow 390L/m, (GX160 Motor)
Features
  • Reliable HONDA GX160 Fire Fighting Pump
  • Single Impeller & Self Priming
  • 3.1L Fuel Tank Capacity
  • Fuel Type: Unleaded Petrol
  • High Performance Pump
  • Manufactured in Australia Using High Quality Parts
  • Applications: Fire Fighting, Water Transfer, Tank Filling & Crop Spraying
  • 2 Year Pump Parts and Labour Warranty

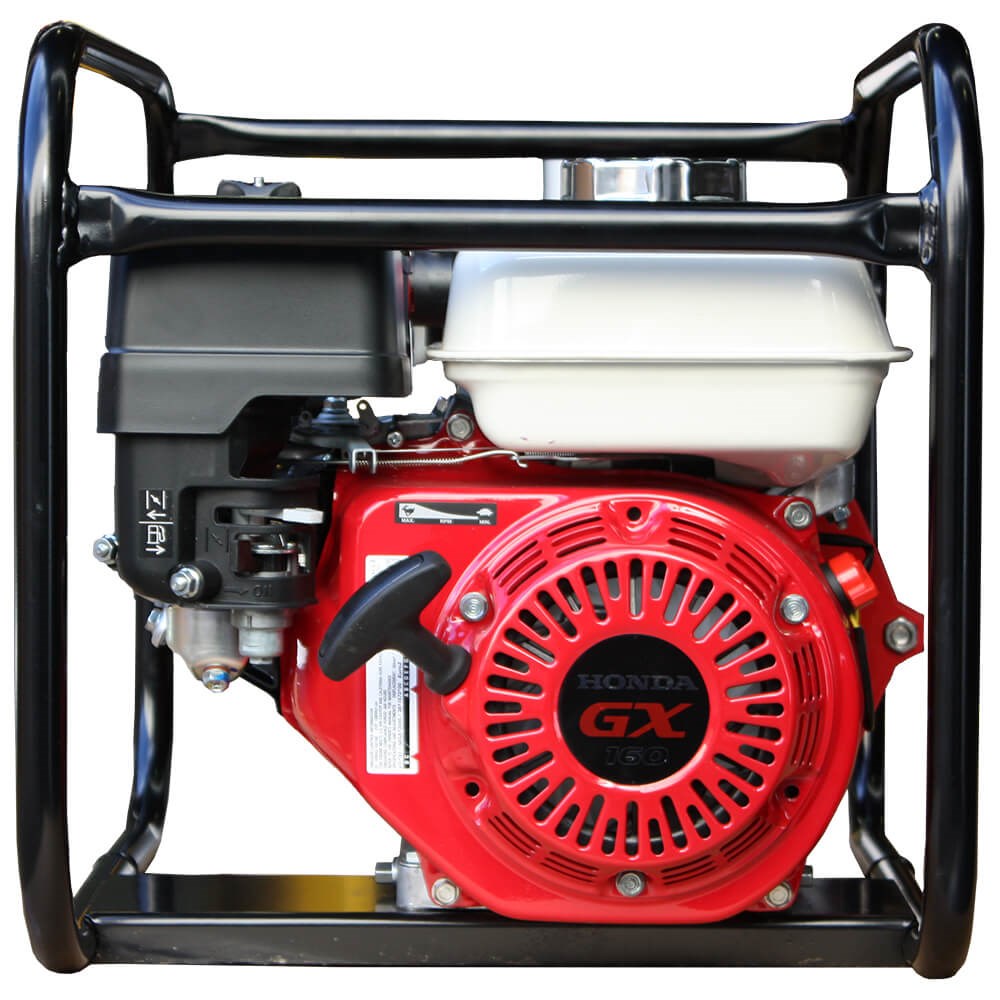

Honda GX160

Low noise levels, low vibration, and low emissions – without sacrificing power output or performance.

  • Fuel Efficient, High Output Operation
  • Smooth Performance
  • Exceptionally Quiet
  • Proven Reliability
  • Easy To Use And Maintain
  • Easy Starting
  • Emissions Compliant
GX160
Engine Type Air-cooled 4-stroke OHV
Bore x Stroke 68 X 45 mm
Displacement 163 cm3
Net Power Output* 4.8 hp (3.6 kW) @ 3,600 rpm
Net Torque 7.6 lb-ft (10.3 Nm) @ 2,500 rpm
Oil Capacity 0.58 L
Fuel Tank Capacity 3.1 Liters
Fuel Unleaded 86 octane or higher
Dry Weight 33 lbs. (15.1 kg)
Product Range Brochure
Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Spare Parts Information and Exploded Diagrams
Download Spare Parts Information & Exploded Diagrams v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0
