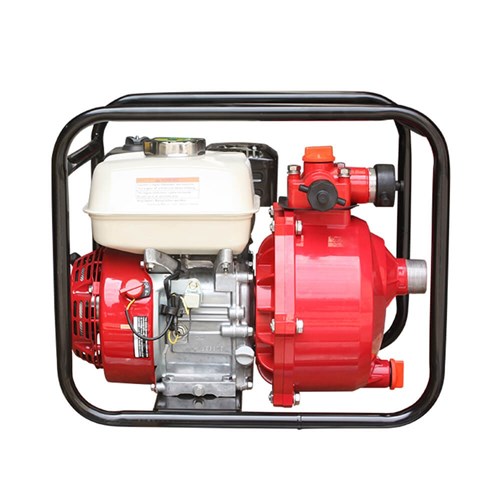

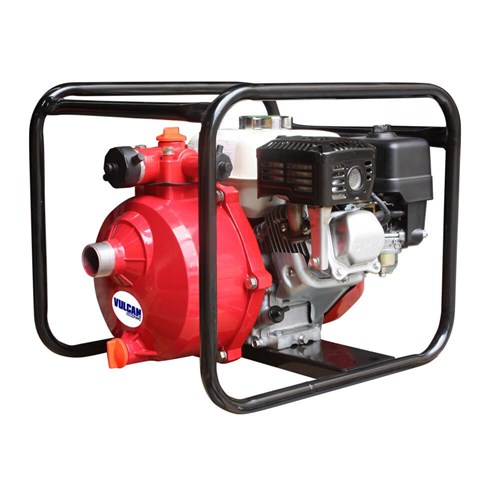

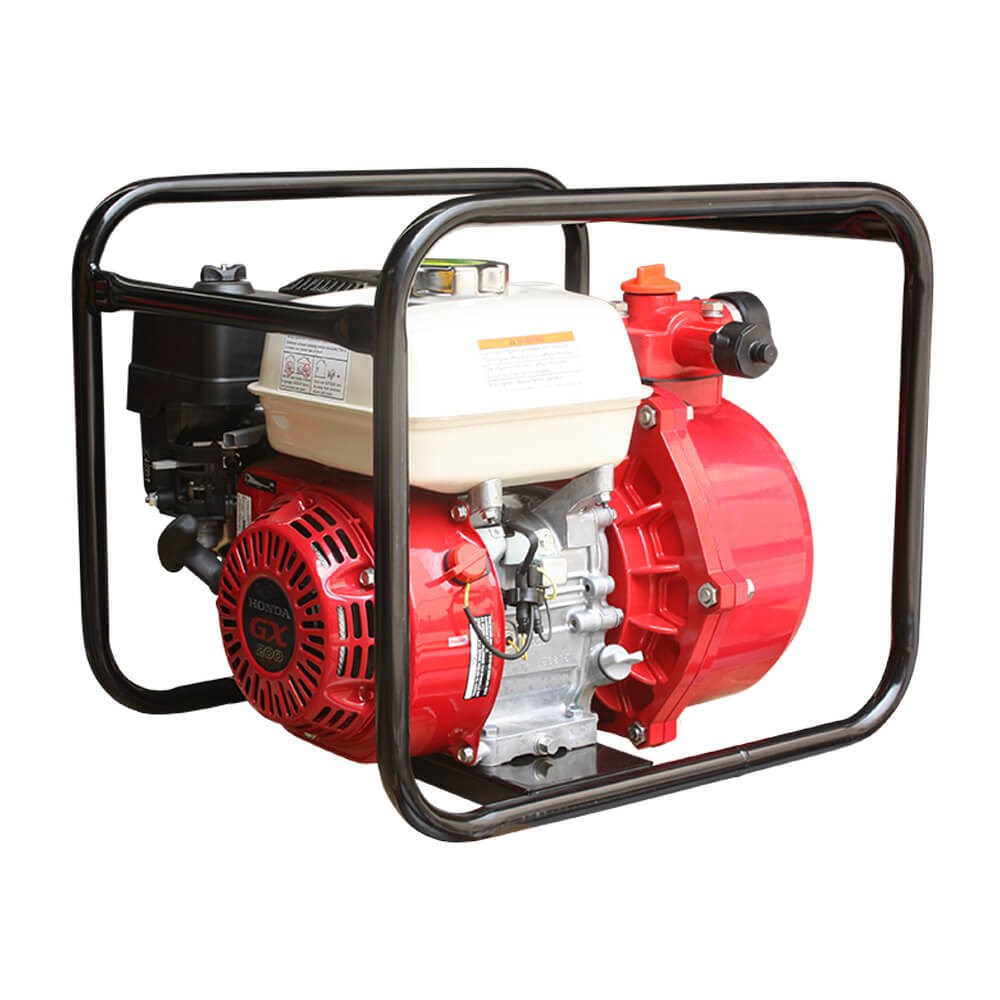

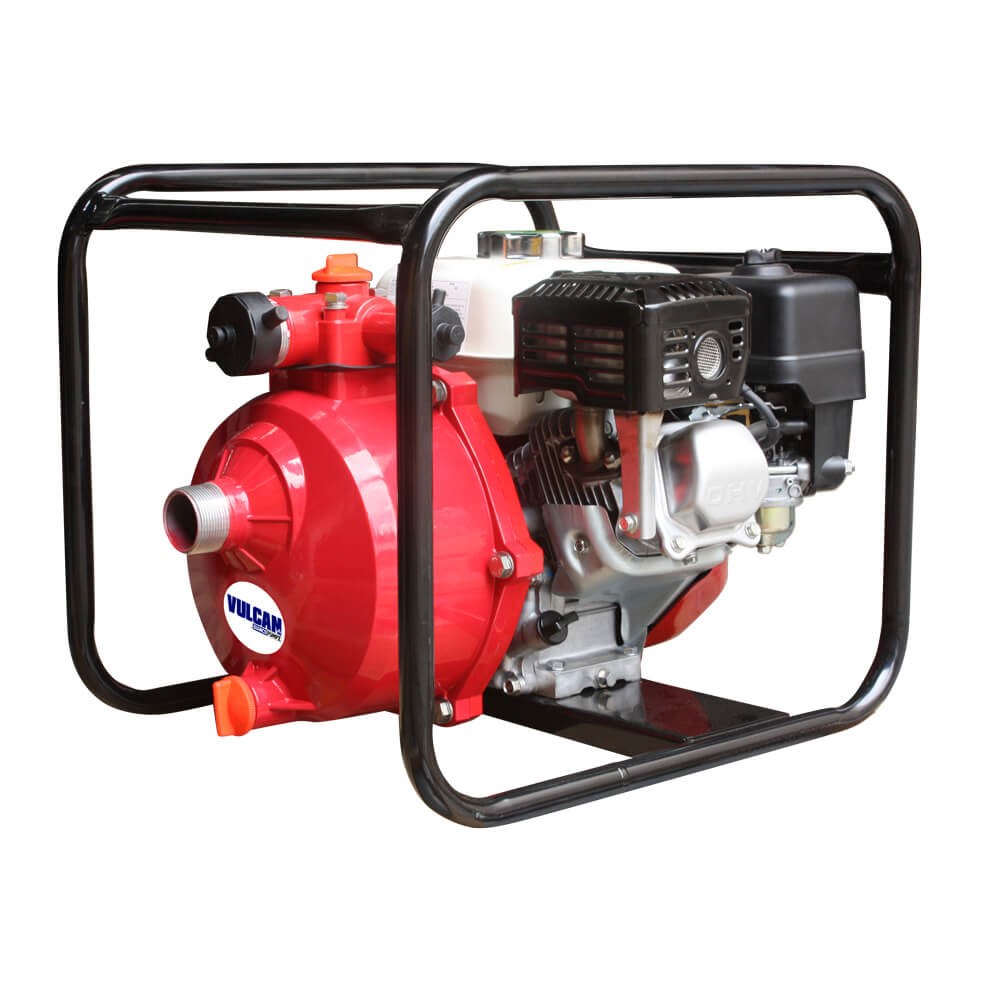

BIA-MH215SHP - Bianco Vulcan Engine Driven Fire Pump - Powered by Honda GX200

Order Code: 809994

Print
Product Code
BIA-MH215SHP
RRP: $2035.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand Bianco Pumpz
Product Type Engine Driven Pump
Suitable For Water Transfer
Fuel Petrol
Hp 6.5
Max Flow (L/min) 570
Max Head (m) 74.5
Port Size Outlet 1 x 1-1/2" + 2 x 1"BSPM
Pack Weight (KG):
27.00
Description
Bianco Vulcan HONDA GX200 Fire Fighting Pump

Max head 74.5m, max flow 570L/m, (GX200 Motor)
Features
  • Reliable HONDA GX200 Fire Fighting Pump
  • Single Impeller & Self Priming
  • 3.1L Fuel Tank Capacity
  • Fuel Type: Unleaded Petrol
  • High Performance Pump
  • Manufactured in Australia Using High Quality Parts
  • Applications: Fire Fighting, Water Transfer, Tank Filling & Crop Spraying
  • 2 Year Pump Parts and Labour Warranty

Honda GX200

Low noise levels, low vibration, and low emissions – without sacrificing power output or performance.

  • FUEL EFFICIENT, HIGH OUTPUT OPERATION
  • SMOOTH PERFORMANCE
  • EXCEPTIONALLY QUIET
  • PROVEN RELIABILITY
  • EASY TO USE AND MAINTAIN
  • EASY STARTING
  • EMISSIONS COMPLIANT
GX200
Engine Type Air-cooled 4-stroke OHV
Bore x Stroke 68 X 54 mm
Displacement 196 cm3
Net Power Output* 5.8 hp (4.3 kW) @ 3,600 rpm
Net Torque 9.1 lb-ft (12.4 Nm) @ 2,500 rpm
Oil Capacity 0.6L
Fuel Tank Capacity 3.1 Liters
Fuel Unleaded 86 octane or higher
Dry Weight 35 lbs. (16.1 kg)
Product Range Brochure
Downloads
Product Information and Data Sheets
Download Product Information & Data Sheets v1.0
Operation and Installation Manuals
Download Operation & Installation Manuals v1.0

You may also need these:

Similar Products

Spare Parts
Code
Part Number
Description
810032
BIA MH15SHP-1
BIA-MH152HP-1 PUMP BODY (BACK) BIA MH15SHP-1
810043
BIA MH15SHP-12
BIA-MH15SHP-12 MECHANICAL SEAL BIA MH15SHP-12
810044
BIA MH15SHP-13
BIA-MH15SHP-13 GASKET WITH NYLON BIA MH15SHP-13
810045
BIA MH15SHP-14
BIA-MH15SHP-14 BOLT M10 X 35 WASHER & NUT BIA MH15SHP-14
810046
BIA MH15SHP-15
BIA-MH15SHP-15 BOLT M10 X 60 WASHER & NUT BIA MH15SHP-15
810047
BIA MH15SHP-16
BIA-MH15SHP-16 GASKET FOR 3-WAY OUTLET BIA MH15SHP-16
810048
BIA MH15SHP-17
BIA-MH15SHP-17 RUBBER FOOT BIA MH15SHP-17
810033
BIA MH15SHP-2
BIA-MH15SHP-2 FRONT COVER BIA MH15SHP-2
810034
BIA MH15SHP-3
BIA-MH15SHP-3 WAY OUTLET BIA MH15SHP-3
810035
BIA MH15SHP-4
BIA-MH15SHP-4 DIFFUSER (IMPELLER & HOUSING) BIA MH15SHP-4
810036
BIA MH15SHP-5
BIA-MH15SHP-5 IMPELLER BIA MH15SHP-5
810037
BIA MH15SHP-6
BIA-MH15SHP-6 COVER (BIG) BLACK BIA MH15SHP-6
810038
BIA MH15SHP-7
BIA-MH15SHP-7 COVER (SMALL) BLACK BIA MH15SHP-7
810039
BIA MH15SHP-8
BIA-MH15SHP-8 PLASTIC PLUG RED BIA MH15SHP-8
810041
BIA MH15SHP-10
BIANCO MH15SHP-10 SEAL B (FRONT) BIA MH15SHP-10
810042
BIA MH15SHP-11
BIANCO MH15SHP-11 O�RING BIA MH15SHP-11
