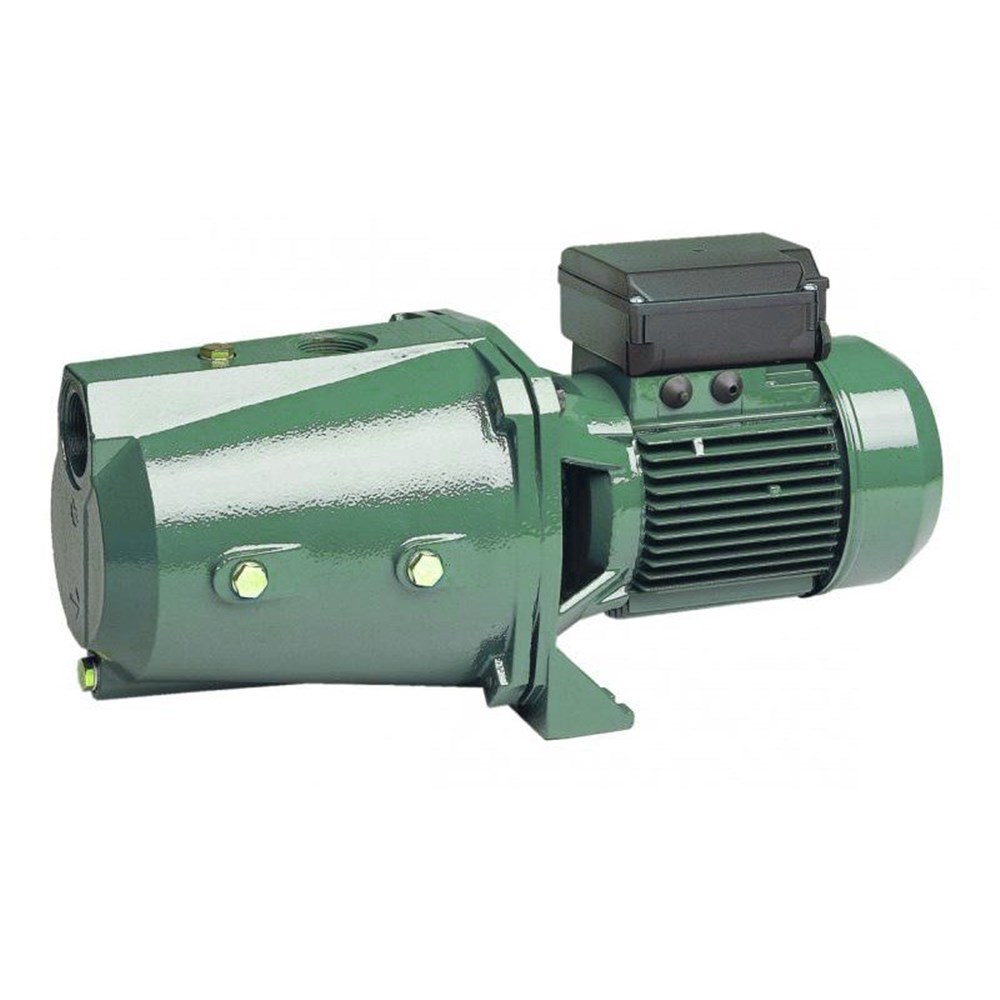

DAB-200M - PUMP SURFACE MOUNTED CAST IRON 175L/MIN 41M 1.47KW 240V

Order Code: 701398

Print
Product Code
DAB-200M
RRP: $1980.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Product Type Single Stage Jet Pump
Suitable For Tank Transfer
Bar 4.1 Bar
Flow Range Category b. 100 - 199 L/min
Flow Rate (L/min) 175 L/min
Hp 2 Hp
kPa 415 kPa
Kilo Watts 1.47 kW
Casing Material Cast Iron
Head Range Category b. 40 - 59 m
Max Head (m) 41 m
Port Size Inlet 1 1/2" BSPF inlet
Port Size Outlet 1 1/4" BSPF outlet
Powered Electric
Volts 240 V
Warranty (months) 24 Months
Watts 1470 W
Pack Weight (KG):
28.10
Description
Self Priming Single Stage Jet Assisted Cast Iron Jet Pump

Suitable for pressure boosting, irrigation and wash down applications. Designed for pumping from tanks, rivers and dams.

1.47kW, 2.0hp, 240V, max hd 41m, max flow 175L/m Ports 1 1/2" BSPF In, 1 1/4” BSPF Out

Warranty

2 Year DAB Pumps Warranty

Handy Hints for Installing Your Jet Pump
  • Location: The pump should be located as close to the water source as possible and should be protected from the elements
  • Piping: Only use pipe that is in good condition and free of rust or scale
  • Types of Pipe: Plastic or galvanised steel can be used with jet pumps
  • Water to Pump Piping: All offset piping should slope upwards from water source to pump.
Drinking Water Approved
AS/NZS 4020 drinking water approved

AS/NZS 4020 Drinking Water Approved.

Pumps that are AS/NZS 4020 Drinking Water Approved Offer peace-of-mind.

This approval ensures that the pump will not contribute any toxic materials or metals to the liquid being pumped, won’t support the growth of micro-organisms and won’t change the taste or appearance of your water. Read More...

Similar Products

Spare Parts
Code
Part Number
Description
702210
DABSR00005203
BOLT JET200M-N.1
702209
DABSR00005202
DABS R00005202 - O RING
702211
DABSR00005205 6204DU
DABS R00005205 REAR BEARING
702212
DABSR00005206 31.5UF CABLE
DABS R00005206 - CAPACITOR 31.5UF CABLE
702213
DABSR00005207
DABS R00005207 Impeller Kit, includes Impeller, Diffuser, O-ring, Key
702216
DABSR00005210
DABS R00005210 SEAL JET200M-N.1
702218
DABSR00005212
DABS R00005212 VENTURI JET200M-N.1
702244
DABSR00005258
DABS R00005258 - FRONT BEARING
702207
DABSR00005199
FAN DP151M-N.3
702129
DABSR00004703
FAN GUARD DP-M-N.3
702219
DABSR00005213
LOAD PLUG DP100M-N.3
702214
DABSR00005208
MOTOR COVER DP151M-N.3
702220
DABSR00005221
PUMP BODY JET200M-N.1
702208
DABSR00005200
SUPPORT JET200M-N.1
702217
DABSR00005211
TERMINAL BOARD JET151M-N.3
