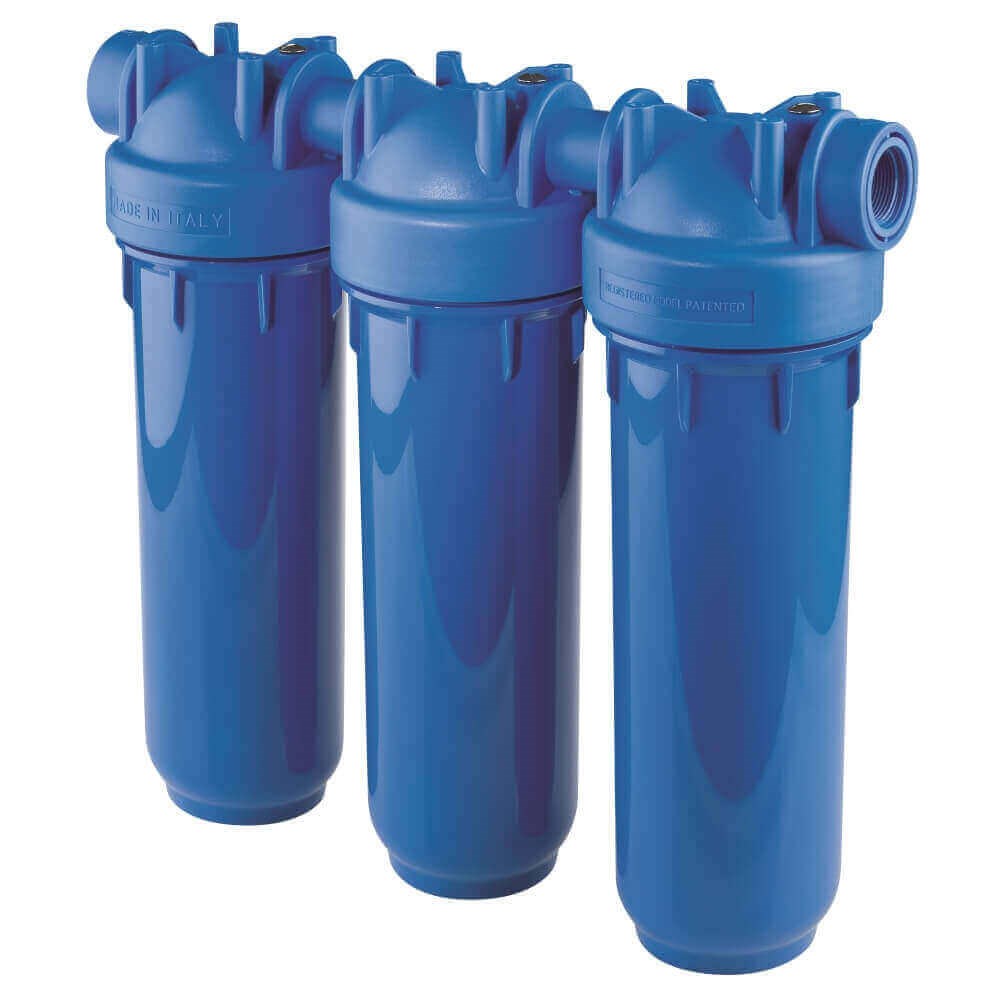

DP Trio Filter Housing 10" Std 1" In/Out with Spanner & Bracket

Order Code: 807576

Print
Product Code
ATF-KITDP10TRIO1INAB
RRP: $319.00 incl. GST
Find Your Nearest Store
Technical Specifications
Brand Atlas Filtri
Product Type Std Housings
Material PET
Inlet/Outlet 1"
Max Pressure (bar) 8
Min Temp (degrees celsius) 4
Max Temp (degrees celsius) 45
Application Underbench
Filter 10" Std
Pack Weight (KG):
2.64
Description

A Trio 10” Standard Filter housing, with 1” in/out plastic BSP threads.

Chooses the Trio with 3 filter bowls on a single moulded head to save time plumbing up separate housings when you need to use three in series and reduce the number of potential leak points,

Designed to accept 10”x 2.5” filter cartridges.

These are most commonly used domestic, commercial and industrial applications

Features

Italian made, with an international patent for superior construction, Atlas Filtri Standard Housings are high quality, environmentally friendly housings suitable for a wide range of standard flow/capacity filtering needs.

These are available in:

  • Mono - single filter housing
  • Duo - Double Filter housing with moulded head
  • Trio – Triple - Filter housing with moulded head

All Atlas Filtri BIG Housings come with:

  • Bracket
  • Spanner
  • Lubrikit (O-ring lubricant)
Working Conditions
Max Working Pressure8bar (116 psi)
Max Working Temperature45°C (113°F)
Min Working Temperature4°C (39.2°F)
Downloads
Product Brochures
Download Brochures v1.0
Spare Parts
Code
Part Number
Description
