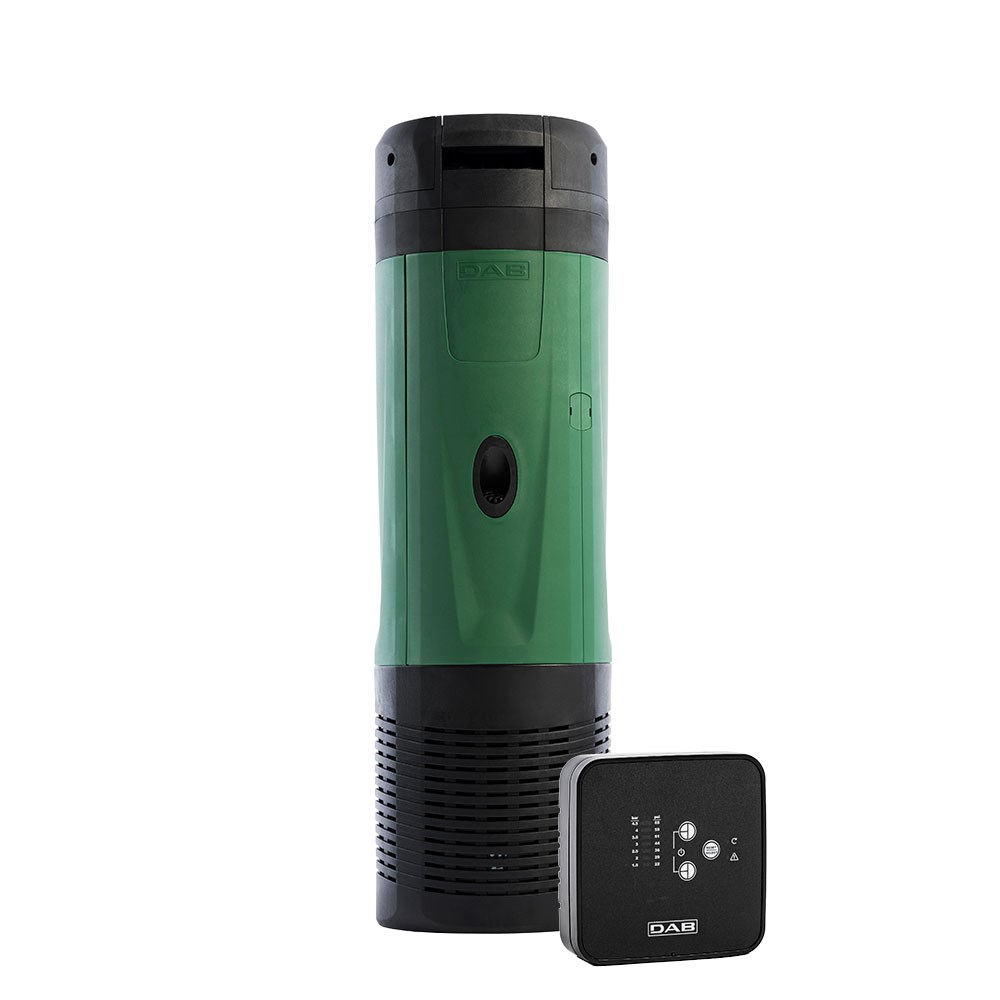

DAB-DTRON3 45/90 - 7" Electronic Multistage Submersible Pump with Com Box 95 L/Min 45m Head 1.0KW

Order Code: 808459

Print
Product Code
DAB DTRON3 45/90
RRP: $1650.00 incl. GST
Find Your Nearest Store
Product Documents Find a Service Agent
Technical Specifications
Brand DAB Pumps
Bar 4.5
Flow Range Category a. 100 - 199 L/min
Flow Rate (L/min) 105
Kilo Watts 0.93
Head Range Category b. 40 - 59 m
Max Head (m) 45m
Port Size Outlet 1 1/4" BSPF outlet
Volts 240 V
Pack Weight (KG):
11.60
Description
  • 7" Electronic Multi Stage Pump
  • The Com Box allows you to change the pump's pressure settings and view alarms. No direct connections with the pump PLC (Power Line Communication) are required.
  • The Optional External Float detects the level of water in a tank , preventing emptying of the tank and avoiding dry running due to low water level
  • The Bleed Valve allows immediate priming upon initial installation
  • The modular components of the pump make it easier to perform maintenance
  • The integrated expansion vessel prevents it from restarting unnecessarily, provides protection against hammering effects and extends the life of the pump
  • The DOC68 accessory and IP68 certification, allows the DTRON Pumps to be installed even out of water and used like real traditional booster pumps
  • Large range to suit most applications
  • Ergonomic Carry Handle for easy transportation and installation
  • Resistance to high and low temperatures
  • Certified for Drinking Water
Warranty
2 Year Pump Parts and Labour Warranty
